Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
- Blue Point
- Series BPML

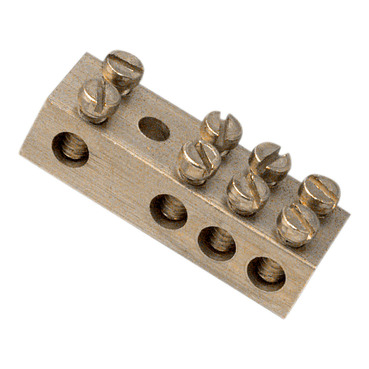

Product or component type
link bar
Physical
[in] rated current
55 A
Connector type
screw terminals
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cable cross section
10 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.4 cm
Package 1 width
1.3 cm
Package 1 length
3.8 cm
Package 1 weight
35 g
Sustainable packaging
No
Warranty (in months)
18
