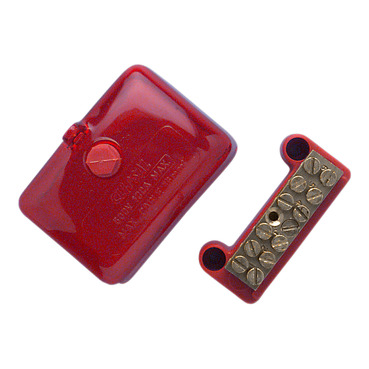

Clipsal - Max 4 Mini Active link 100 A 500 V 6 hole with cover front wiring Red
Item Number: L6R
Datasheet
Close
Specifications
Design
Range
MAX9
Product brand
Clipsal
Range of product
Blue Point
Product or component type
active link
Physical
[in] rated current
100 A
[ue] rated operational voltage
500 V
Connector type
screw terminals
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cable cross section
16 mm²
Number of mounting holes
6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.5 cm
Package 1 width
7 cm
Package 1 length
4.6 cm
Package 1 weight
72 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
