Specifications
Design
| Range | Resi MAX |
|---|---|
| Product brand | Clipsal |

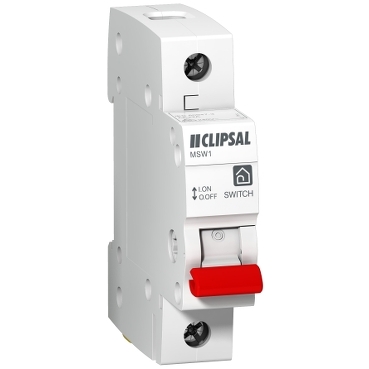

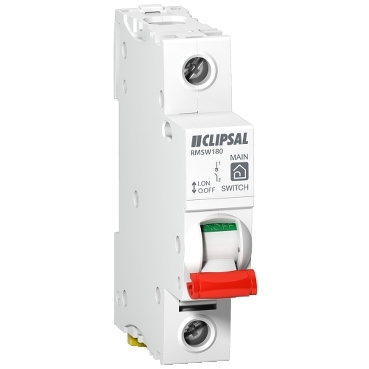

| Product or component type | switch disconnector |
Physical
| [ue] rated operational voltage | <= 250 V AC |
|---|---|
| [in] rated current | 80 A |
| Number of poles | 1 |
| Mounting support | DIN rail |
| Ip degree of protection | front face: IP20 |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP110309EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
