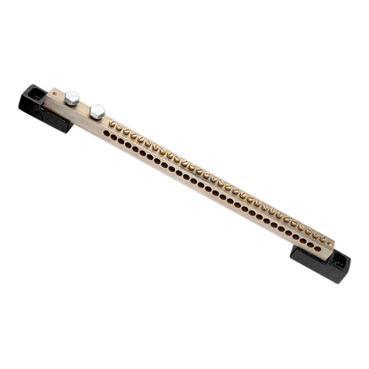

Clipsal - Max 4 Link bar with moulded mounting blocks 90 A 30 hole length 257mm
Item Number: BPQL30
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
- Series BPQL
- Blue Point
Product or component type
link bar
Physical
[in] rated current
90 A
Connector type
screw terminals
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cable cross section
16 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.9 cm
Package 1 width
3.9 cm
Package 1 length
29.1 cm
Package 1 weight
0.34 kg
Sustainable packaging
No
Warranty (in months)
18
