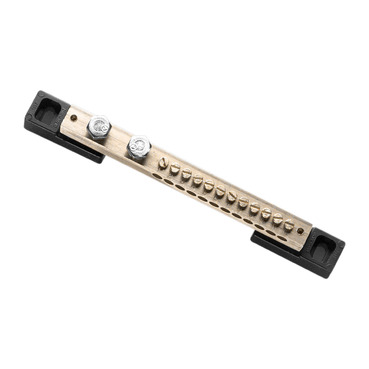

Clipsal - Max 4 Link bar with moulded mounting blocks 90 A 12 hole length 143mm
Item Number: BPQL12
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
- Blue Point
- Series BPQL
Product or component type
link bar
Physical
[in] rated current
90 A
Connector type
screw terminals
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Circularity profile
N/A
Others
Commercial status history
- SESA65410
- Tue Mar 19 22:08:00 EDT 2024
- From Import Local
- From 18 to 19
Package 1 bare product quantity
1
Cable cross section
16 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 cm
Package 1 width
2 cm
Package 1 length
17.7 cm
Package 1 weight
208 g
Packaging made with recycled cardboard
Yes
Documents & downloads
hide showFilter items
-
All
-
Technical Data Catalogues
-
Specification Guide
Frequently Asked Questions
What is the part number of a 12 hole neutral link with mounting feet that can take 16 mm² cable?
Hide Show
BPQL12, is a 12 hole Bare Link with Mounting Blocks takes 16mm² cable. It is a 90A Link Bar with moulded mounting blocks.
Key Features
- Bar section 13 x 13 mm
- Two 1/4 inch Hexagon head stud for cable lugs
- Bare link with mounting blocks
- 5.5 mm Diameter Tunnel
- 190 deg C maximum temperature rating
- 12 tunnel- single screw
- All tunnels are numbered
- 143 mm overall length
