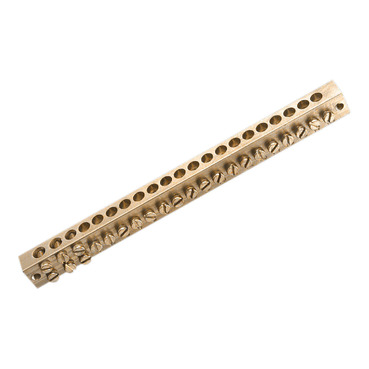

Clipsal - Max 4 Link bar 90 A 18 hole length 148mm

Home ProductsCircuit ProtectionMax 4Link bar

Clipsal - Max 4 Link bar 90 A 18 hole length 148mm

Item Number: BP90A18

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318793003117	-

Specifications

Design

Product brand	Clipsal
Range of product	Series BP90A Blue Point
Product or component type	link bar

Physical

[in] rated current	90 A
Connector type	screw terminals
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Cable cross section	16 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.1 cm
Package 1 width	1.2 cm
Package 1 length	14.8 cm
Package 1 weight	118 g
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Average percentage of recycled metal content	0 %
Warranty (in months)	18

Show all specifications
