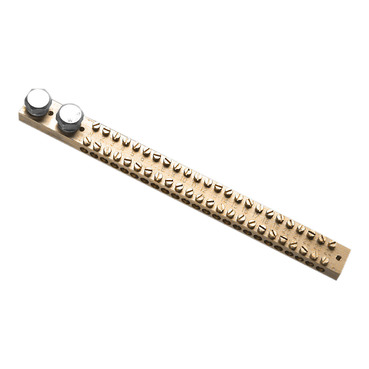

Clipsal - Max 4 Link bar 165 A 24 hole length 223mm2 hexagon head
Item Number: BP165D24
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range of product |
|
| Product or component type | link bar |
Physical
| [in] rated current | 165 A |
|---|---|
| Connector type | screw terminals |
| Number of poles | 1 |
| Height | 223 mm |
| Width | 19 mm |
| Depth | 9.5 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2206007EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents & downloads
Filter items
-
All
-
Technical Data Catalogues
-
Specification Guide
-
Declaration of Conformity (Sustainability)
