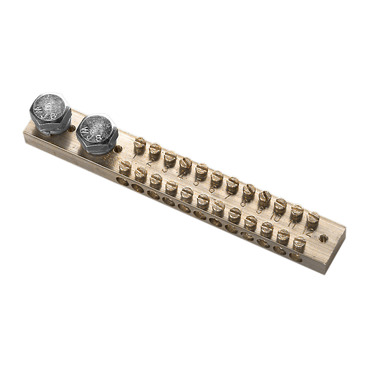

Clipsal - Max 4 Link bar 165 A 12 hole length 138mm2 hexagon head

Item Number: BP165D12

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width19 mm

Height138 mm

Depth9.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318793001786	-
10	CRT	9318793012706	-
50	CAR	19318793001783	-

Specifications

Design

Product brand	Clipsal
Range of product	Blue Point Series BP165D
Product or component type	link bar

Physical

[in] rated current	165 A
Connector type	screw terminals
Number of poles	1
Height	138 mm
Width	19 mm
Depth	9.5 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206007EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Cable cross section	16 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.9 cm
Package 1 width	1.9 cm
Package 1 length	13.8 cm
Package 1 weight	188.6 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	5.4 cm
Package 2 width	10.2 cm
Package 2 length	14.8 cm
Package 2 weight	1.938 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	13 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.8461027989428814
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.054762540276233916
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.09836610212867397
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	11.650747946073075
Carbon footprint of the use phase [b2, b3, b4, b6]	12 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.3378078728282582
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	12.987787260249121
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
