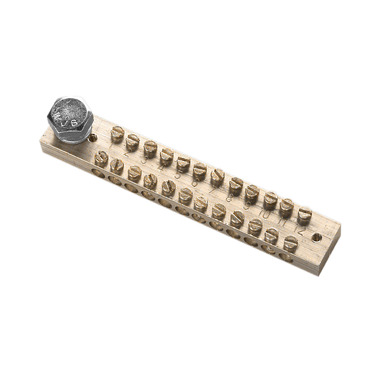

Clipsal - Max 4 Link bar 165 A 12 hole length 116mm 1 hexagon head

Item Number: BP165C12

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width19 mm

Height116 mm

Depth9.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318793001670	-
10	CRT	9318793012898	-
50	CAR	19318793001677	-

Specifications

Design

Product brand	Clipsal
Range of product	Series BP165C Blue Point
Product or component type	link bar

Physical

[in] rated current	165 A
Connector type	screw terminals
Number of poles	1
Height	116 mm
Width	19 mm
Depth	9.5 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206007EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Cable cross section	16 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.1 cm
Package 1 width	2.2 cm
Package 1 length	11.7 cm
Package 1 weight	143 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	56 cm
Package 2 width	78 cm
Package 2 length	154 cm
Package 2 weight	1.472 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	13 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.6401730171895875
Carbon footprint of the manufacturing phase [a1 to a3]	0.6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.04143409132011349
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.07442514605502845
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	11.650747946073075
Carbon footprint of the use phase [b2, b3, b4, b6]	12 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.2555900836742906
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	12.662370284312095
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
