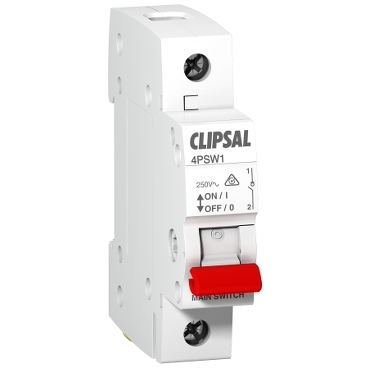

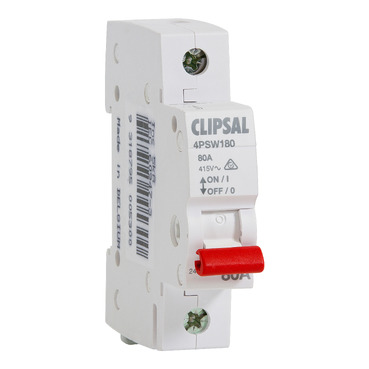

Clipsal - Max 4 DIN Rail Mount Isolators, 1 Pole, 1 Module, 18mm, 240V, 80A
Item Number: 4PSW180
Datasheet
Close
Specifications
Design
Range of product
Series 4
Product brand
Clipsal
Product or component type
switch disconnector
Physical
[ue] rated operational voltage
<= 240 V AC
[in] rated current
80 A
Number of poles
1
Mounting support
DIN rail
Ip degree of protection
front face: IP20
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110309EN
Circularity profile
ENVEOLI1103009EN
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9 cm
Package 1 width
2 cm
Package 1 length
7.5 cm
Package 1 weight
80 g
