Clipsal - Max 4 Contactor 25 A 240VAC 4 NO 2 modules

Item Number: 4CNT4

1 PCE 0

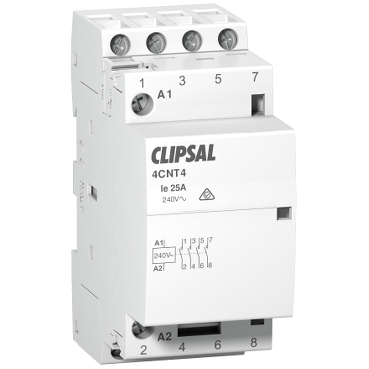

This Clipsal MAX4 product is a contactor. It is a 4 poles remote control device with 4 normally open contacts. The rated current is 25A, operating voltage is 240VAC and control voltage is 415VAC. This device could be used for control circuits. This product is compliant with IEC/EN 61095 standard.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795010595	-
6	BB1	9311554728199	-
40	CAR	19318795017362	-

Specifications

Design

Product brand	Clipsal
Range of product	Power Series 4

Physical

Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1103008EN
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Weee label	N/A
Warranty duration(in months) bmecat	18
	Outside of Europe
[us] rated supply voltage	415 V AC 50 Hz
Network type	AC
Auxiliary contact composition	4 NO
Total power losses	4.2 W
Power losses per pole	1.4 W
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.4 cm
Package 1 width	12.3 cm
Package 1 length	4.2 cm
Package 1 weight	239.1 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	258 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.862956047772722
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0239151984241077
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.000523308077619782
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	257.51772
Carbon footprint of the use phase [b2, b3, b4, b6]	258 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0247841410255788
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	258.4298986953
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	6763a476-30bc-4d05-a4bb-93f8d65c3771
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
