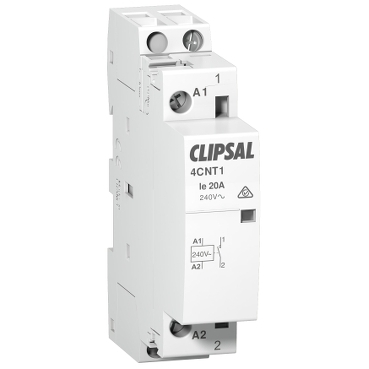

Clipsal - Max 4 Contactor 25 A 240VAC 1 NO 1 module
Item Number: 4CNT1
Colour ()
- 1 PCE 0
This Clipsal MAX4 product is a contactor. It is a 1 pole remote control device with 1 normally open contacts. The rated current is 25A, operating voltage is 240VAC and control voltage is 240VAC. This device could be used for control circuits. This product is compliant with IEC/EN 61095 standard.
Datasheet
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| - | |||
| - | |||
| - |
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| 1 | PCE | 9318795010564 | - |
| 10 | BB1 | 9318795012308 | - |
| 100 | CAR | 19318795012305 | - |
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range of product |
|
Physical
| Mercury free | Yes |
|---|---|
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1103008EN |
| Eu rohs directive | Compliant By Exemption |
Others
| Life cycle assessment data | Yes |
|---|---|
| Legacy weee scope | In |
| Package 1 bare product quantity | 1 |
| Average percentage of bio-based plastic content | 0 % |
| Average percentage of recycled plastic content | 0 % |
| Outside of Europe | |
| Weee label | N/A |
| [us] rated supply voltage | 240 V AC 50 Hz |
| Network type | AC |
| Auxiliary contact composition | 1 NO |
| Total power losses | 2.8 W |
| Power losses per pole | 1.4 W |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 6.9 cm |
| Package 1 width | 1.8 cm |
| Package 1 length | 8.4 cm |
| Package 1 weight | 110.0 g |
| Green premium status for reporting | Green Premium product |
| Total lifecycle carbon footprint | 147 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [a1 to a3] | 0.601531765501855 |
| Carbon footprint of the manufacturing phase [a1 to a3] | 0.6 kg CO2 eq. |
| Carbon footprint of the distribution phase [a4] | 0.0155859708196884 |
| Carbon footprint of the distribution phase [a4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [a5] | 0.000341049414805074 |
| Carbon footprint of the installation phase [a5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 145.926708 |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 146 kg CO2 eq. |
| Sustainable packaging | No |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0.0161522765550764 |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0 kg CO2 eq. |
| Energy efficiency optimized | False |
| F-gas free | N/A |
| Updatability | N/A |
| Take-back | No |
| Product contributes to saved and avoided emissions | No |
| Removable battery | N/A |
| Total lifecycle carbon footprint | 146.560319062291 |
| Average percentage of recycled metal content | 0 % |
| Packaging made with recycled cardboard | No |
| Packaging without single use plastic | No |
| Scip number | 429095ee-388a-4184-bea4-16f87e374975 |
| Oecd pfas declaration url | https://download.schneider-electric.com/files?p_Doc_Ref=4CNT1_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Ship recycling declaration url | https://download.schneider-electric.com/files?p_Doc_Ref=4CNT1_SHIP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Oecd pfas regulation | Item contains PFAS Chemicals |
| Ship recycling directive | Reportable |
| End of life manual availability | N/A |
| Take-back | No |
| Warranty (in months) | 18 |
