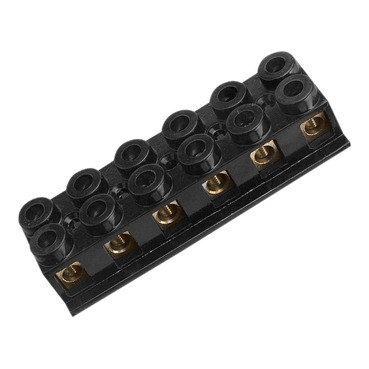

Max 4 Link Bars Connector Strip 80A

Qty	UoM	EAN	Colour
1	PCE	9318793002967	-
10	CRT	9318793002974	-
100	CAR	19318793002964	-

Specifications

Design

Product brand	Clipsal
Range of product	Blue Point

Physical

[in] rated current	110 A
Connector type	1 screw terminals 2 screw terminals
Number of poles	6
Mounting support	panel
Width	grid pattern: 40 mm
Length	110 mm
Ambient air temperature for operation	190 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1210019EN
Eu rohs directive	Compliant By Exemption

Material

Material	bakelite: insulation

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Distance between centers	hole: 15 mm
Cable cross section	25 mm² fine stranded without cable end sleeve
Minimum mounting height	25 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.5 cm
Package 1 width	4 cm
Package 1 length	11 cm
Package 1 weight	168 g
Sustainable packaging	No
Scip number	c6f2fabe-d5ba-4588-bd03-c90f7def1381
End of life manual availability	N/A
Warranty (in months)	18
