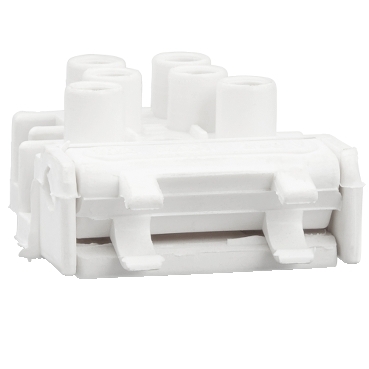

Max 4 Link Bars Connector Block 20A

Item Number: BP504F

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318793002424	-
50	CRT	9311554609610	-
500	CAR	19318793002421	-

Specifications

Design

Product brand	Clipsal
Range of product	Blue Point

Physical

[in] rated current	20 A
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1210019EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Weee label	N/A
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.8 cm
Package 1 width	3.5 cm
Package 1 length	4.4 cm
Package 1 weight	16.4 g
Sustainable packaging	No
Scip number	c6f2fabe-d5ba-4588-bd03-c90f7def1381
End of life manual availability	N/A
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Environmental Disclosure
Specification Guide
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
