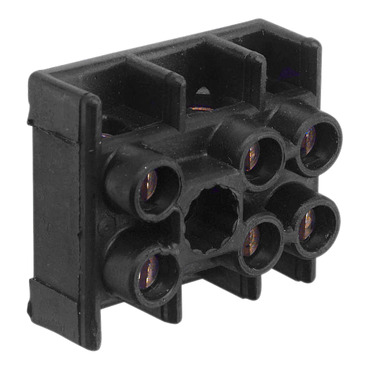

Max 4 Link Bars Connector Block 20A, 2 Way, Triple Entry Single Unit

Name: Max 4 Link Bars Connector Block 20A, 2 Way, Triple Entry Single Unit
Brand: Clipsal
SKU: BP303
Availability: InStock

Width33 mm

Height30 mm

Depth16 mm

Qty	UoM	EAN	Colour
1	PCE	9318793002196	-
500	CAR	19318793002193	-

Specifications

Design

Physical

[in] rated current	20 A
[ue] rated operational voltage	500 V
Connector type	screw terminals
Height	30 mm
Width	33 mm
Depth	16 mm
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1210019EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Weee applicability	Finished product
Weee label	N/A
Warranty duration(in months) bmecat	18
	Outside of Europe
Cable cross section	2 x 2.5...2.5 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.5 cm
Package 1 width	2.8 cm
Package 1 length	3.3 cm
Package 1 weight	18.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.091368
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00270684
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00500076
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0499842
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.14905980000000002
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
