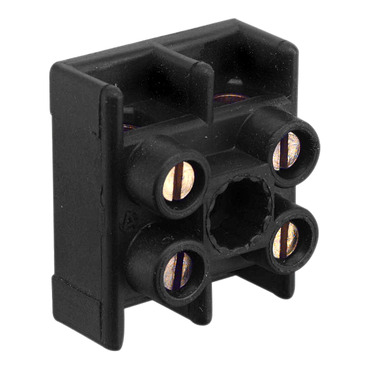

Max 4 Link Bars Connector Block 20A, 2 Way, Double Entry with Platform
Item Number: BP302
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Blue Point
Product or component type
connector block
Physical
[in] rated current
20 A
[ue] rated operational voltage
500 V
Connector type
screw terminals
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP121019EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cable cross section
2 x 2.5...2.5 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.7 cm
Package 1 width
1.6 cm
Package 1 length
2.8 cm
Package 1 weight
14 g
Sustainable packaging
No
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
End of life manual availability
N/A
Warranty (in months)
18
