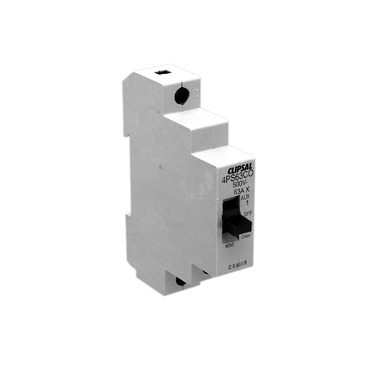

Clipsal - Max 4 Change over switch 1P 63 A 415 V Night off day
Item Number: 4PS63CO
This MAX4 product is a switch disconnector. It is a single pole device with a In rated current of 63A.
Datasheet
Close
Specifications
Design
| Range of product | Series 4 |
|---|---|
| Product brand | Clipsal |
| Product or component type | switch disconnector |
Physical
| [ue] rated operational voltage | <= 415 V AC |
|---|---|
| [in] rated current | 63 A |
| Number of poles | 1 |
| Mounting support | DIN rail |
| Marking | NIGHT-OFF-DAY |
| Ip degree of protection | front face: IP20 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2112003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
