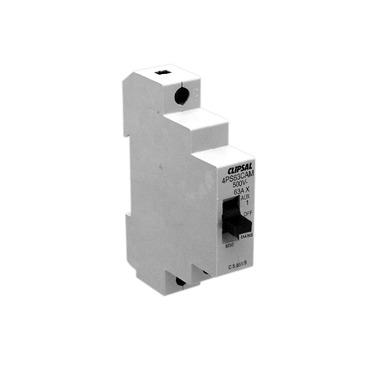

Clipsal - Max 4 Change over switch 1P 63 A 415 V Auxiliary off manual

Item Number: 4PS63CAM

1 PCE 0

This MAX4 product is a switch disconnector. It is a single pole device with a In rated current of 63A.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795008349	-
10	CRT	9318795008356	-
20	CAR	19318795008346	-

Specifications

Design

Range of product	Series 4
Product brand	Clipsal
Product or component type	switch disconnector

Physical

[ue] rated operational voltage	<= 415 V AC
[in] rated current	63 A
Number of poles	1
Mounting support	DIN rail
Marking	AUXILIARY-OFF-MANUAL
Ip degree of protection	front face: IP20
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

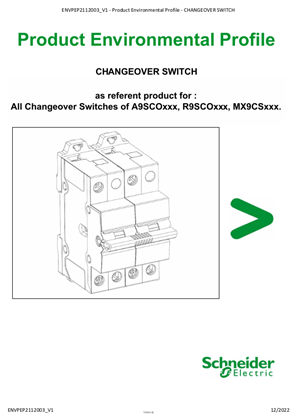

Environmental disclosure	ENVPEP2112003EN
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2 cm
Package 1 width	9.2 cm
Package 1 length	7.5 cm
Package 1 weight	102.7 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	0.7 cm
Package 2 width	9.5 cm
Package 2 length	21.2 cm
Package 2 weight	1.2 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	0dbcf8b1-4732-4e36-88bc-462a078c2d4c
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
