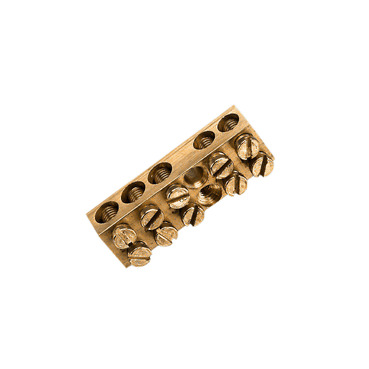

Clipsal - Max 4 Brass link bar 100 A 500 V 5 hole

Home ProductsCircuit ProtectionMax 4Brass link bar

Clipsal - Max 4 Brass link bar 100 A 500 V 5 hole

Item Number: L5P

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318793006354	-
20	CRT	9318793504997	-
500	CAR	19318793006351	-

Specifications

Design

Range	MAX9
Product brand	Clipsal
Range of product	Blue Point
Product or component type	bare link

Physical

[in] rated current	100 A
[ue] rated operational voltage	500 V
Connector type	screw terminals
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Number of mounting holes	5
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.3 cm
Package 1 width	1.4 cm
Package 1 length	4.2 cm
Package 1 weight	34 g
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
End of life manual availability	N/A
Warranty (in months)	18
