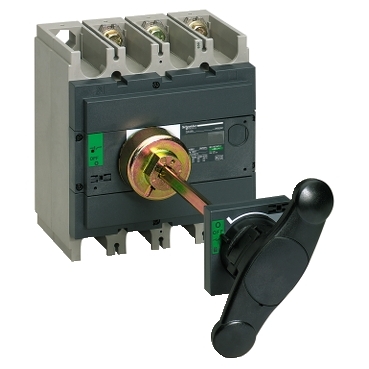

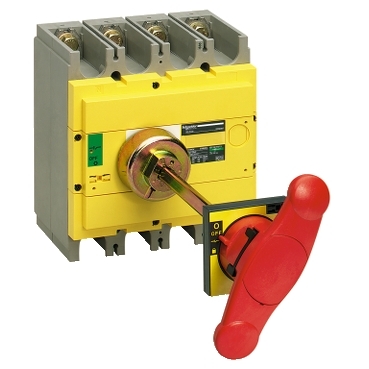

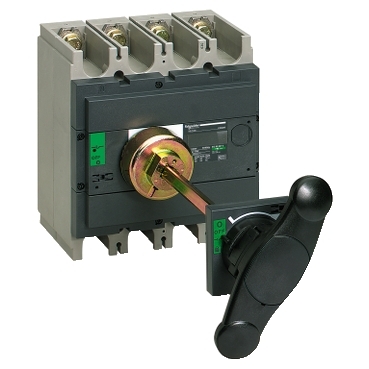

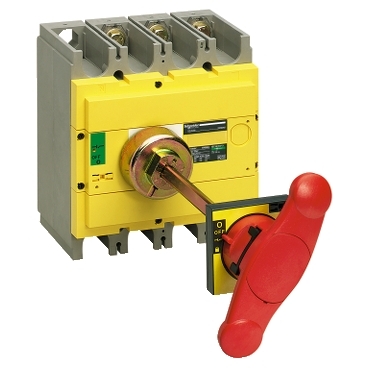

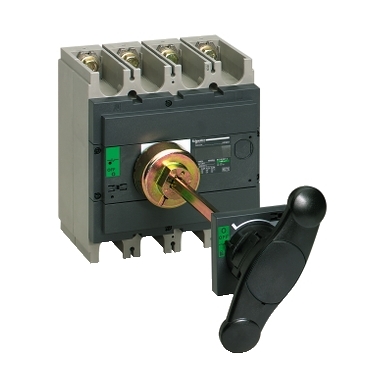

Compact Interpact Switch Disconnector Front Rotary Handle, INS 320 to 630

Item Number: 31052

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3303430310525	-

Specifications

Design

Range of product	INS320...630 INV320...630 INSJ400
Product or component type	rotary handle
Warranty	18 months

Physical

Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2604017EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	12
Legacy weee scope	Out
Substance regulation data deliverable	Yes
If one of the deliverables is not relevant please give the reason	Accessory
Life cycle assessment data	No
Warranty duration(in months) bmecat	18
Package 3 bare product quantity	48
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Device short name	rotary handle
Accessory / separate part type	control accessories
Handle colour	black
Handle front plate colour	black
Rotary handle mounting style	extended
Rotary handle padlocking	padlock in OFF position
Rotary handle mounting location	front
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.200 cm
Package 1 width	9.800 cm
Package 1 length	49.000 cm
Package 1 weight	1.283 kg
Unit type of package 2	S04
Number of units in package 2	12
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	16.106 kg
Unit type of package 3	P12
Number of units in package 3	48
Package 3 height	50.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	75.622 kg
Total lifecycle carbon footprint	15 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	12.6884061272689
Carbon footprint of the manufacturing phase [a1 to a3]	13 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.237293492098044
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.01238180436974379
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.862785036807741
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	14.800866460544428
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Scip number	e8cb98b6-97f6-4ab0-87fb-0fb5ce45e589
End of life manual availability	ENVEOLI2604017EN
Take-back	No
Warranty (in months)	18
