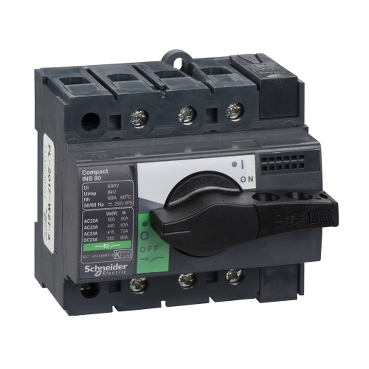

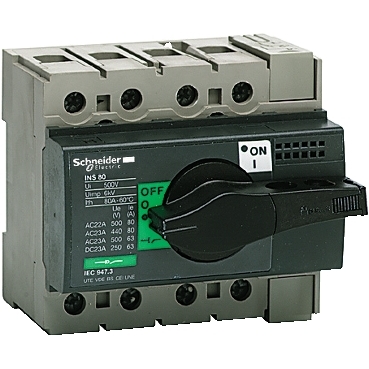

ComPact, Switch disconnector, Compact INS80 , 80 A, standard version with black rotary handle, 3 poles

ComPact, Switch disconnector, Compact INS80 , 80 A, standard version with black rotary handle, 3 poles

Item Number: 28904

Datasheet

Product Dimensions

Width icon

Width90 mm

Height icon

Height85 mm

Depth icon

Depth62.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ComPact

Range of product

INS40...160

Product or component type

switch disconnector

Warranty

18 months

Physical

[ie] rated operational current

AC-23A: 40 A AC 50/60 Hz 500 V|AC-23A: 63 A AC 50/60 Hz 440/480 V|AC-22A: 80 A AC 50/60 Hz 220/240 V|AC-22A: 80 A AC 50/60 Hz 380/415 V|AC-22A: 80 A AC 50/60 Hz 440/480 V|AC-22A: 80 A AC 50/60 Hz 500 V|AC-23A: 72 A AC 50/60 Hz 380/415 V|AC-23A: 80 A AC 50/60 Hz 220/240 V|DC-22A: 80 A DC 125 V 2 poles in series|DC-23A: 80 A DC 125 V 2 poles in series

[ue] rated operational voltage

125 V DC|500 V AC 50/60 Hz

Control type

rotary handle

Mounting mode

fixed

Mounting support

plate|DIN rail

Mechanical durability

20000 cycles

Electrical durability

AC-22A: 1500 cycles 220/240 V AC 50/60 Hz|AC-22A: 1500 cycles 380/415 V AC 50/60 Hz|AC-22A: 1500 cycles 440 V AC 50/60 Hz|AC-22A: 1500 cycles 500 V AC 50/60 Hz|AC-23A: 1500 cycles 220/240 V AC 50/60 Hz|AC-23A: 1500 cycles 380/415 V AC 50/60 Hz|AC-23A: 1500 cycles 440 V AC 50/60 Hz|AC-23A: 1500 cycles 500 V AC 50/60 Hz|DC-22A: 1500 cycles 250 V DC 2 poles in series|DC-23A: 1500 cycles 250 V DC 2 poles in series

Height

85 mm

Width

90 mm

Depth

62.5 mm

Net weight

0.5 kg

Standards

IEC 60947-3|IEC 60947-1

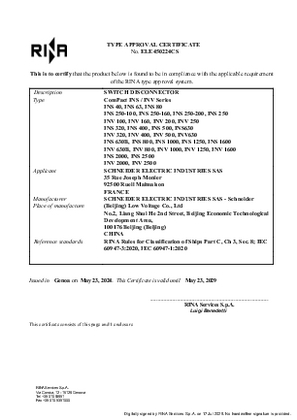

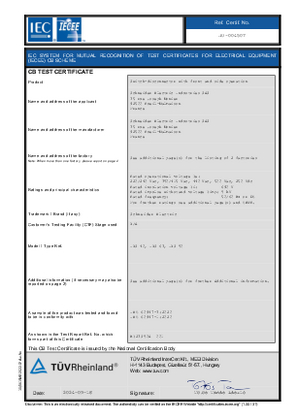

Product certifications

CCC|KEMA-KEUR

Ip degree of protection

IP40 conforming to IEC 60529

Ik degree of protection

IK07 conforming to EN 50102

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-50...85 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1304025

Circularity profile

ENVEOLI1304025

California proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Product name

ComPacT INS

Device short name

Compact INS80

Switch-disconnector name

Compact INS80

Poles description

3P

Network type

DC|AC

Network frequency

50/60 Hz

[ui] rated insulation voltage

690 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

8 kV

[ith] conventional free air thermal current

80 A at 60 °C

[icm] rated short-circuit making capacity

15 kA switch-disconnector alone 500 V AC at 50/60 Hz|75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz

Suitability for isolation

yes

Contact position indicator

yes

Visible break

no

Pollution degree

3

Handle colour

black

Upside connection

front

Downside connection

front

Cable cross section

1.5...50 mm²

Maximum power

AC-23: 22 kW at 500/525 V AC 50/60 Hz|AC-23: 22 kW at 220/240 V AC 50/60 Hz|AC-23: 37 kW at 380/415 V AC 50/60 Hz|AC-23: 37 kW at 440 V AC 50/60 Hz

Rated duty

uninterrupted

Intermittent duty class

class 120 - 60 %

[icw] rated short-time withstand current

0.67 kA during 20 s conforming to IEC 60947-3|1.73 kA during 3 s conforming to IEC 60947-3|3 kA during 1 s conforming to IEC 60947-3|0.55 kA during 30 s conforming to IEC 60947-3

Connection pitch

18 mm

Compatibility code

INS80

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.300 cm

Package 1 width

10.000 cm

Package 1 length

10.000 cm

Package 1 weight

600.000 g

Unit type of package 2

S03

Number of units in package 2

18

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

11.200 kg

Unit type of package 3

P12

Number of units in package 3

144

Package 3 height

50.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

103.160 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

69.77643995138015
