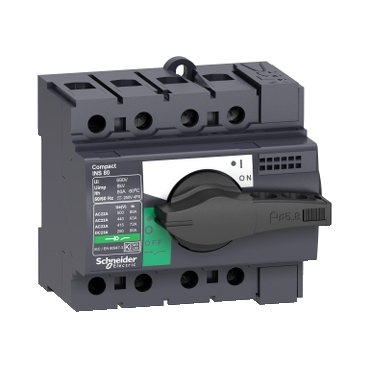

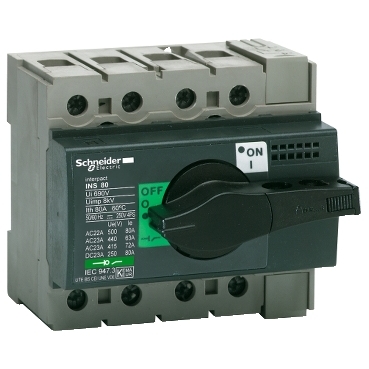

ComPact Switch disconnector Compact INS40 , 40 A, standard version with black rotary handle, 3 poles

Item Number: 28900

1 PCE 0

Where To Buy

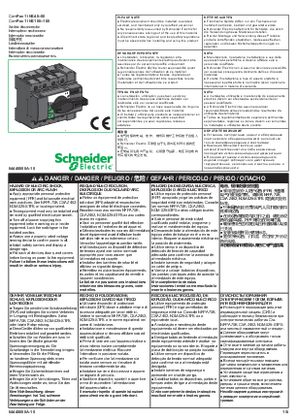

Datasheet

Download

Product Dimensions

Width90 mm

Height85 mm

Depth62.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3303430289005	-

Specifications

Design

Range	ComPact
Range of product	INS40...160
Product or component type	switch disconnector
Warranty	18 months

Physical

[ie] rated operational current	AC-22A: 40 A AC 50/60 Hz 220/240 V AC-22A: 40 A AC 50/60 Hz 380/415 V AC-22A: 40 A AC 50/60 Hz 440/480 V AC-22A: 40 A AC 50/60 Hz 500 V AC-23A: 32 A AC 50/60 Hz 500 V AC-23A: 40 A AC 50/60 Hz 220/240 V AC-23A: 40 A AC 50/60 Hz 380/415 V AC-23A: 40 A AC 50/60 Hz 440/480 V DC-22A: 40 A DC 125 V 2 poles in series DC-23A: 40 A DC 125 V 2 poles in series
[ue] rated operational voltage	125 V DC 500 V AC 50/60 Hz
Control type	rotary handle
Mounting mode	fixed
Mounting support	DIN rail plate
Mechanical durability	20000 cycles
Electrical durability	AC-22A: 1500 cycles 220/240 V AC 50/60 Hz AC-22A: 1500 cycles 380/415 V AC 50/60 Hz AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 220/240 V AC 50/60 Hz AC-23A: 1500 cycles 380/415 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz DC-22A: 1500 cycles 250 V DC 2 poles in series DC-23A: 1500 cycles 250 V DC 2 poles in series
Height	85 mm
Width	90 mm
Depth	62.5 mm
Net weight	0.5 kg
Standards	IEC 60947-1 IEC 60947-3
Product certifications	KEMA-KEUR CCC
Ip degree of protection	IP40 conforming to IEC 60529
Ik degree of protection	IK07 conforming to EN 50102
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-50...85 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

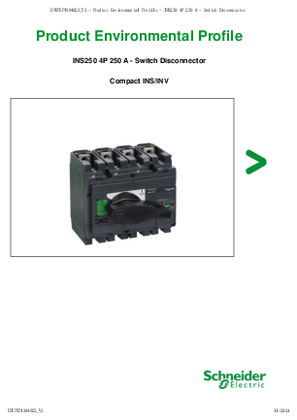

Environmental disclosure	ENVPEP1304025EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
If one of the deliverables is not relevant please give the reason	(Justification if Requiring Env data or LCA analysis=No)
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	18
Package 3 bare product quantity	144
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty duration(in months) bmecat	18
Product name	ComPacT INS
Device short name	Compact INS40
Switch-disconnector name	Compact INS40
Poles description	3P
Network type	DC AC
Network frequency	50/60 Hz
[ui] rated insulation voltage	690 V AC 50/60 Hz
[uimp] rated impulse withstand voltage	8 kV
[ith] conventional free air thermal current	40 A at 60 °C
[icm] rated short-circuit making capacity	15 kA switch-disconnector alone 500 V AC at 50/60 Hz 75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz
Suitability for isolation	yes
Contact position indicator	yes
Visible break	no
Pollution degree	3
Handle colour	black
Upside connection	front
Downside connection	front
Cable cross section	1.5...50 mm²
Maximum power	AC-23: 11 kW at 220/240 V AC 50/60 Hz AC-23: 18.5 kW at 500/525 V AC 50/60 Hz AC-23: 20 kW at 380/415 V AC 50/60 Hz AC-23: 22 kW at 440 V AC 50/60 Hz
Rated duty	uninterrupted
Intermittent duty class	class 120 - 60 %
[icw] rated short-time withstand current	0.67 kA during 20 s conforming to IEC 60947-3 1.73 kA during 3 s conforming to IEC 60947-3 3 kA during 1 s conforming to IEC 60947-3 0.55 kA during 30 s conforming to IEC 60947-3
Connection pitch	18 mm
Compatibility code	INS40
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.500 cm
Package 1 width	9.500 cm
Package 1 length	9.500 cm
Package 1 weight	598.000 g
Unit type of package 2	S03
Number of units in package 2	18
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	11.164 kg
Unit type of package 3	P12
Number of units in package 3	144
Package 3 height	50.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	100.112 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	22 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.4070026855258844
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.07564703716072024
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.02636630858392592
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	17.2056663614315
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.8858917466699219
Carbon footprint of the end-of-life phase [c1 to c4]	0.9 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	21.600574139371954
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
China rohs label	1

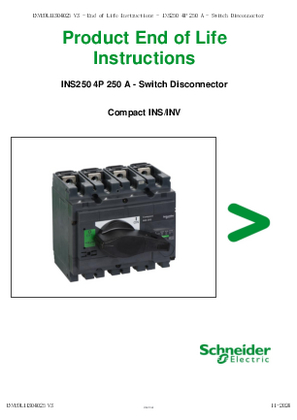

End of life manual availability	ENVEOLI1304025
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
