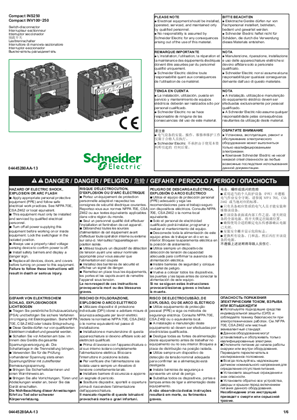

ComPact Switch disconnector Compact INS250 , 250A, standard version with black rotary handle, 3 poles

Item Number: 31106

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width140 mm

Height136 mm

Depth96 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3303430311065	-

Specifications

Design

Range	ComPact
Range of product	INS250
Product or component type	switch disconnector
Warranty	18 months

Physical

[ie] rated operational current	AC-22A: 250 A AC 50/60 Hz 220/240 V AC-22A: 250 A AC 50/60 Hz 380/415 V AC-22A: 250 A AC 50/60 Hz 440/480 V AC-22A: 250 A AC 50/60 Hz 480 V NEMA AC-22A: 250 A AC 50/60 Hz 500/525 V AC-22A: 250 A AC 50/60 Hz 660/690 V AC-23A: 250 A AC 50/60 Hz 220/240 V AC-23A: 250 A AC 50/60 Hz 380/415 V AC-23A: 250 A AC 50/60 Hz 440/480 V AC-23A: 250 A AC 50/60 Hz 480 V NEMA AC-23A: 250 A AC 50/60 Hz 500/525 V AC-23A: 250 A AC 50/60 Hz 660/690 V DC-22A: 250 A DC 125 V 2 poles in series DC-23A: 250 A DC 125 V 2 poles in series
[ue] rated operational voltage	125 V DC 690 V AC 50/60 Hz
Control type	direct front rotary handle
Mounting mode	fixed
Mounting support	rail plate
Mechanical durability	15000 cycles
Electrical durability	AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 690 V AC 50/60 Hz DC-22A: 1500 cycles 125 V DC 2 poles in series DC-23A: 1500 cycles 125 V DC 2 poles in series
Height	136 mm
Width	140 mm
Depth	96 mm
Net weight	2 kg
Standards	IEC 60947-3 IEC 60947-1
Product certifications	KEMA-KEUR CCC
Ip degree of protection	IP40 conforming to IEC 60529
Ik degree of protection	IK07 conforming to EN 50102
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-50...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1304025EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	9
Package 3 bare product quantity	36
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	ComPacT INS
Device short name	Interpact INS250
Switch-disconnector name	Interpact INS250
Poles description	3P
Network type	DC AC
Network frequency	50/60 Hz
[ui] rated insulation voltage	800 V AC 50/60 Hz
[ith] conventional free air thermal current	250 A at 60 °C
[icm] rated short-circuit making capacity	30 kA switch-disconnector alone 690 V AC at 50/60 Hz 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
Suitability for isolation	yes
Contact position indicator	yes
Visible break	no
Pollution degree	3
Handle colour	black
Upside connection	front
Downside connection	front
Maximum power	AC-23: 132 kW at 380/415 V AC 50/60 Hz AC-23: 150 kW at 440 V AC 50/60 Hz AC-23: 150 kW at 480 V AC 50/60 Hz (NEMA) AC-23: 160 kW at 500/525 V AC 50/60 Hz AC-23: 210 kW at 660/690 V AC 50/60 Hz AC-23: 75 kW at 220/240 V AC 50/60 Hz AC-23: 75 kW at 230 V AC 50/60 Hz (NEMA)
Rated duty	uninterrupted
[icw] rated short-time withstand current	1.8 kA during 30 s conforming to IEC 60947-3 2.2 kA during 20 s conforming to IEC 60947-3 4.9 kA during 3 s conforming to IEC 60947-3 8.5 kA during 1 s conforming to IEC 60947-3
Connection pitch	35 mm
Compatibility code	INS250
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	13.800 cm
Package 1 width	16.200 cm
Package 1 length	17.400 cm
Package 1 weight	2.224 kg
Unit type of package 2	S04
Number of units in package 2	9
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	20.712 kg
Unit type of package 3	P12
Number of units in package 3	36
Package 3 height	50.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	94.050 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	344 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	13.628010742103537
Carbon footprint of the manufacturing phase [a1 to a3]	14 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.30258814864288097
Carbon footprint of the distribution phase [a4]	0.3 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.10546523433570368
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	326.90766086719844
Carbon footprint of the use phase [b2, b3, b4, b6]	327 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	3.5435669866796875
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	344.4872919789603
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Scip number	bbc62998-8aa6-42dc-8088-17a5c936153d
End of life manual availability	ENVEOLI1304025
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
