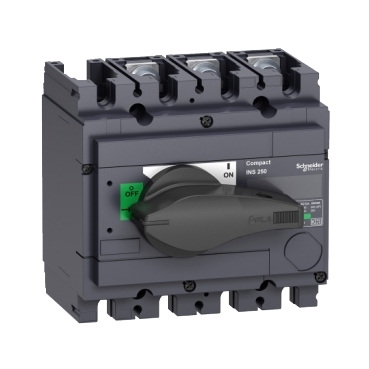

ComPact Switch disconnector Compact INS250-200 , 200 A, standard version with black rotary handle, 3 poles

Home ProductsCircuit ProtectionComPactSwitch disconnector

ComPact Switch disconnector Compact INS250-200 , 200 A, standard version with black rotary handle, 3 poles

Item Number: 31102

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width140 mm

Height icon

Height136 mm

Depth icon

Depth96 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ComPact

Range of product

INS250

Product or component type

switch disconnector

Warranty

18 months

Physical

[ie] rated operational current

  • AC-22A: 200 A AC 50/60 Hz 220/240 V
  • AC-22A: 200 A AC 50/60 Hz 380/415 V
  • AC-22A: 200 A AC 50/60 Hz 440/480 V
  • AC-22A: 200 A AC 50/60 Hz 480 V NEMA
  • AC-22A: 200 A AC 50/60 Hz 500/525 V
  • AC-22A: 200 A AC 50/60 Hz 660/690 V
  • AC-23A: 200 A AC 50/60 Hz 220/240 V
  • AC-23A: 200 A AC 50/60 Hz 380/415 V
  • AC-23A: 200 A AC 50/60 Hz 440/480 V
  • AC-23A: 200 A AC 50/60 Hz 480 V NEMA
  • AC-23A: 200 A AC 50/60 Hz 500/525 V
  • AC-23A: 200 A AC 50/60 Hz 660/690 V
  • DC-22A: 200 A DC 125 V 2 poles in series
  • DC-23A: 200 A DC 125 V 2 poles in series

[ue] rated operational voltage

  • 125 V DC
  • 690 V AC 50/60 Hz

Control type

direct front rotary handle

Mounting mode

fixed

Mounting support

  • plate
  • rail

Mechanical durability

15000 cycles

Electrical durability

  • AC-22A: 1500 cycles 440 V AC 50/60 Hz
  • AC-22A: 1500 cycles 500 V AC 50/60 Hz
  • AC-22A: 1500 cycles 690 V AC 50/60 Hz
  • AC-23A: 1500 cycles 440 V AC 50/60 Hz
  • AC-23A: 1500 cycles 500 V AC 50/60 Hz
  • AC-23A: 1500 cycles 690 V AC 50/60 Hz
  • DC-22A: 1500 cycles 125 V DC 2 poles in series
  • DC-23A: 1500 cycles 125 V DC 2 poles in series

Height

136 mm

Width

140 mm

Depth

96 mm

Net weight

2 kg

Standards

  • IEC 60947-1
  • IEC 60947-3

Product certifications

  • CCC
  • KEMA-KEUR

Ip degree of protection

IP40 conforming to IEC 60529

Ik degree of protection

IK07 conforming to EN 50102

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-50...85 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1304025

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

9

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

ComPacT INS

Device short name

Interpact INS250

Switch-disconnector name

Interpact INS250

Poles description

3P

Network type

  • DC
  • AC

Network frequency

50/60 Hz

[ui] rated insulation voltage

800 V AC 50/60 Hz

[ith] conventional free air thermal current

200 A at 60 °C

[icm] rated short-circuit making capacity

  • 30 kA switch-disconnector alone 690 V AC at 50/60 Hz
  • 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz

Suitability for isolation

yes

Contact position indicator

yes

Visible break

no

Pollution degree

3

Handle colour

black

Upside connection

front

Downside connection

front

Maximum power

  • AC-23: 110 kW at 440 V AC 50/60 Hz
  • AC-23: 110 kW at 480 V AC 50/60 Hz (NEMA)
  • AC-23: 132 kW at 500/525 V AC 50/60 Hz
  • AC-23: 160 kW at 660/690 V AC 50/60 Hz
  • AC-23: 55 kW at 220/240 V AC 50/60 Hz
  • AC-23: 55 kW at 230 V AC 50/60 Hz (NEMA)
  • AC-23: 90 kW at 380/415 V AC 50/60 Hz

Rated duty

uninterrupted

[icw] rated short-time withstand current

  • 1.8 kA during 30 s conforming to IEC 60947-3
  • 2.2 kA during 20 s conforming to IEC 60947-3
  • 4.9 kA during 3 s conforming to IEC 60947-3
  • 8.5 kA during 1 s conforming to IEC 60947-3

Connection pitch

35 mm

Compatibility code

INS250

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

16.500 cm

Package 1 width

13.500 cm

Package 1 length

16.000 cm

Package 1 weight

2.219 kg

Unit type of package 2

S04

Number of units in package 2

9

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

20.673 kg

Total lifecycle carbon footprint

224 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

13.628010742103537

Carbon footprint of the manufacturing phase [a1 to a3]

14 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.30258814864288097

Carbon footprint of the distribution phase [a4]

0.3 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.10546523433570368

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

206.46799633717796

Carbon footprint of the use phase [b2, b3, b4, b6]

206 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

3.5435669866796875

Carbon footprint of the end-of-life phase [c1 to c4]

4 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

224.04762744893978

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards

Scip number

e07f84b1-8f0b-4216-b13d-b812d80ed78b

End of life manual availability

ENVEOLI1304025

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
