ComPact Switch disconnector Compact INS250-100 , 100 A, standard version with black rotary handle, 3 poles
Item Number: 31100
Specifications
Design
Range
Range of product
Product or component type
Warranty
Physical
[ie] rated operational current
- AC-22A: 100 A AC 50/60 Hz 220/240 V
- AC-22A: 100 A AC 50/60 Hz 380/415 V
- AC-22A: 100 A AC 50/60 Hz 440/480 V
- AC-22A: 100 A AC 50/60 Hz 480 V NEMA
- AC-22A: 100 A AC 50/60 Hz 500/525 V
- AC-22A: 100 A AC 50/60 Hz 660/690 V
- AC-23A: 100 A AC 50/60 Hz 220/240 V
- AC-23A: 100 A AC 50/60 Hz 380/415 V
- AC-23A: 100 A AC 50/60 Hz 440/480 V
- AC-23A: 100 A AC 50/60 Hz 480 V NEMA
- AC-23A: 100 A AC 50/60 Hz 500/525 V
- AC-23A: 100 A AC 50/60 Hz 660/690 V
- DC-22A: 100 A DC 125 V 2 poles in series
- DC-23A: 100 A DC 125 V 2 poles in series
[ue] rated operational voltage
- 125 V DC
- 690 V AC 50/60 Hz
Control type
Mounting mode
Mounting support
- rail
- plate
Mechanical durability
Electrical durability
- AC-22A: 1500 cycles 440 V AC 50/60 Hz
- AC-22A: 1500 cycles 500 V AC 50/60 Hz
- AC-22A: 1500 cycles 690 V AC 50/60 Hz
- AC-23A: 1500 cycles 440 V AC 50/60 Hz
- AC-23A: 1500 cycles 500 V AC 50/60 Hz
- AC-23A: 1500 cycles 690 V AC 50/60 Hz
- DC-22A: 1500 cycles 125 V DC 2 poles in series
- DC-23A: 1500 cycles 125 V DC 2 poles in series
Height
Width
Depth
Net weight
Standards
- IEC 60947-1
- IEC 60947-3
Product certifications
- CCC
- KEMA-KEUR
Ip degree of protection
Ik degree of protection
Ambient air temperature for operation
Ambient air temperature for storage
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
Others
Life cycle assessment data
If one of the deliverables is not relevant please give the reason
Substance regulation data deliverable
Legacy weee scope
Package 1 bare product quantity
Average percentage of recycled plastic content
Weee label
Product name
Device short name
Switch-disconnector name
Poles description
Network type
- AC
- DC
Network frequency
[ui] rated insulation voltage
[ith] conventional free air thermal current
[icm] rated short-circuit making capacity
- 30 kA switch-disconnector alone 690 V AC at 50/60 Hz
- 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
Suitability for isolation
Contact position indicator
Visible break
Pollution degree
Handle colour
Upside connection
Downside connection
Maximum power
- AC-23: 22 kW at 220/240 V AC 50/60 Hz
- AC-23: 22 kW at 230 V AC 50/60 Hz (NEMA)
- AC-23: 45 kW at 380/415 V AC 50/60 Hz
- AC-23: 55 kW at 440 V AC 50/60 Hz
- AC-23: 55 kW at 480 V AC 50/60 Hz (NEMA)
- AC-23: 55 kW at 500/525 V AC 50/60 Hz
- AC-23: 55 kW at 660/690 V AC 50/60 Hz
Rated duty
[icw] rated short-time withstand current
- 1.8 kA during 30 s conforming to IEC 60947-3
- 2.2 kA during 20 s conforming to IEC 60947-3
- 4.9 kA during 3 s conforming to IEC 60947-3
- 8.5 kA during 1 s conforming to IEC 60947-3
Connection pitch
Compatibility code
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
F-gas free
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
End of life manual availability
Take-back
Weee label
Warranty (in months)
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-

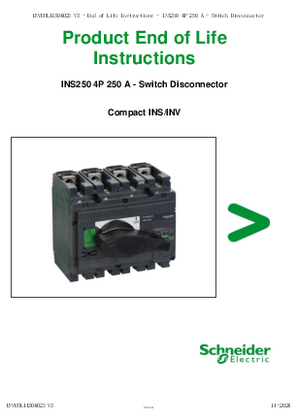

End of Life Manual
-
Installation Instruction
-
Technical illustration
-
Technical Drawing
-
Certificates (MSDS)
-

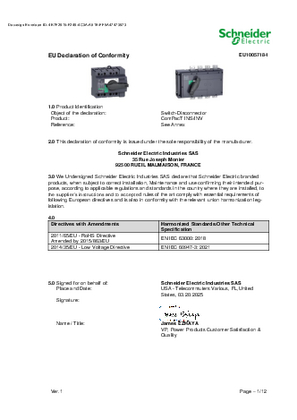

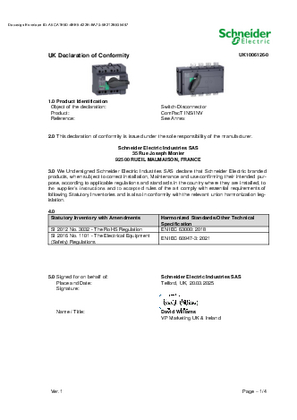

Declaration of Conformity
-
Declaration of Conformity (Sustainability)
ELE450224CS_RINA_ComPacT INS INV
VERSION
1.0
DATE
18 Jul 2025
REVISION
1.0

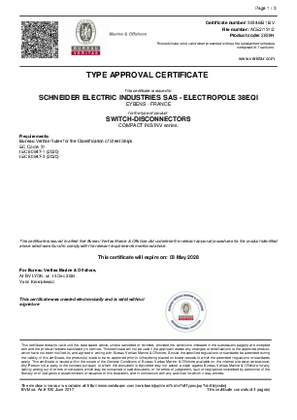

39346_B1_BV_Marine Type Approval Certificate_Compact INS/INV
VERSION
1.0
DATE
20 Dec 2024
REVISION
1.0

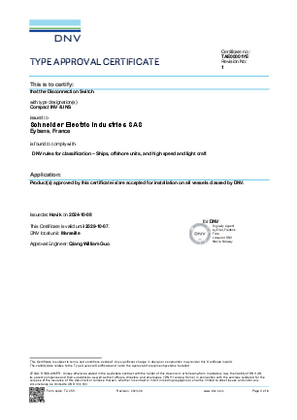

TAE00001YE_DNV Marine Type Approval Certificate_Compact INS/INV
VERSION
1.0
DATE
12 Nov 2024
REVISION
1.0

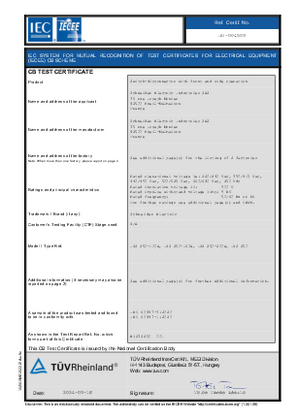

CB_Certificate_INS 250
