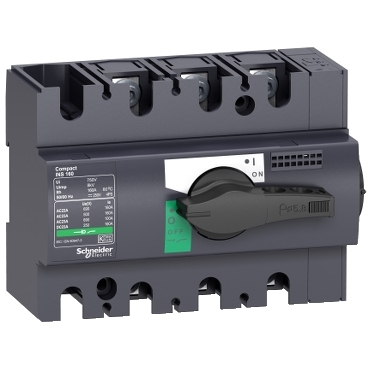

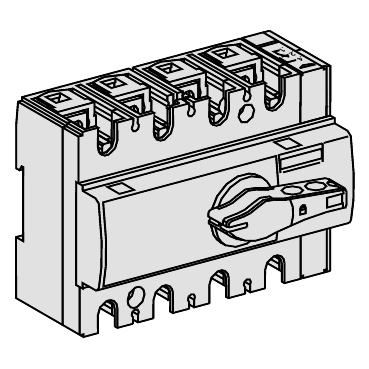

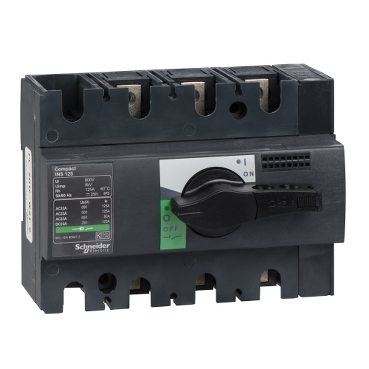

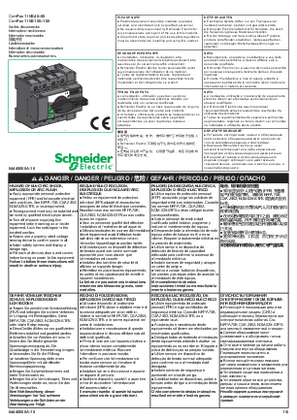

ComPact Switch disconnector Compact INS125 , 125A, standard version with black rotary handle, 3 poles

Item Number: 28910

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width135 mm

Height100 mm

Depth62.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3303430289104	-

Specifications

Design

Range	ComPact
Range of product	INS40...160
Product or component type	switch disconnector
Warranty	18 months

Physical

[ie] rated operational current	AC-22A: 125 A AC 50/60 Hz 220/240 V AC-22A: 125 A AC 50/60 Hz 380/415 V AC-22A: 125 A AC 50/60 Hz 440/480 V AC-22A: 125 A AC 50/60 Hz 500 V AC-22A: 125 A AC 50/60 Hz 660/690 V AC-23A: 125 A AC 50/60 Hz 220/240 V AC-23A: 125 A AC 50/60 Hz 380/415 V AC-23A: 125 A AC 50/60 Hz 440/480 V AC-23A: 125 A AC 50/60 Hz 500 V AC-23A: 80 A AC 50/60 Hz 660/690 V DC-22A: 125 A DC 125 V 2 poles in series DC-23A: 125 A DC 125 V 2 poles in series
[ue] rated operational voltage	125 V DC 690 V AC 50/60 Hz
Control type	rotary handle
Mounting mode	fixed
Mounting support	DIN rail plate
Mechanical durability	15000 cycles
Electrical durability	AC-22A: 1500 cycles 220/240 V AC 50/60 Hz AC-22A: 1500 cycles 380/415 V AC 50/60 Hz AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 220/240 V AC 50/60 Hz AC-23A: 1500 cycles 380/415 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz DC-22A: 1500 cycles 250 V DC 2 poles in series DC-23A: 1500 cycles 250 V DC 2 poles in series AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 690 V AC 50/60 Hz
Height	100 mm
Width	135 mm
Depth	62.5 mm
Net weight	0.8 kg
Standards	IEC 60947-1 IEC 60947-3
Product certifications	CCC KEMA-KEUR
Ip degree of protection	IP40 conforming to IEC 60529
Ik degree of protection	IK07 conforming to EN 50102
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-50...85 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1304025EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 3 bare product quantity	80
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	10
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Legacy weee scope	In
Product name	ComPacT INS
Device short name	Compact INS125
Switch-disconnector name	Compact INS125
Poles description	3P
Network type	AC DC
Network frequency	50/60 Hz
[ui] rated insulation voltage	800 V AC 50/60 Hz
[uimp] rated impulse withstand voltage	8 kV
[ith] conventional free air thermal current	125 A at 60 °C
[icm] rated short-circuit making capacity	154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz 20 kA switch-disconnector alone 690 V AC at 50/60 Hz
Suitability for isolation	yes
Contact position indicator	yes
Visible break	no
Pollution degree	3
Handle colour	black
Upside connection	front
Downside connection	front
Maximum power	AC-23: 55 kW at 440 V AC 50/60 Hz AC-23: 37 kW at 220/240 V AC 50/60 Hz AC-23: 55 kW at 380/415 V AC 50/60 Hz AC-23: 75 kW at 500/525 V AC 50/60 Hz AC-23: 75 kW at 660/690 V AC 50/60 Hz
Rated duty	uninterrupted
Intermittent duty class	class 120 - 60 %
[icw] rated short-time withstand current	1 kA during 30 s conforming to IEC 60947-3 1.23 kA during 20 s conforming to IEC 60947-3 3.175 kA during 3 s conforming to IEC 60947-3 5.5 kA during 1 s conforming to IEC 60947-3
Connection pitch	30 mm
Compatibility code	INS125
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	13.400 cm
Package 1 width	11.400 cm
Package 1 length	15.500 cm
Package 1 weight	1.021 kg
Unit type of package 2	S03
Number of units in package 2	10
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	10.660 kg
Unit type of package 3	P12
Number of units in package 3	80
Package 3 height	43.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	95.680 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	114 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	5.451204296841415
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1210352594571524
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.04218609373428148
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	106.67513144087529
Carbon footprint of the use phase [b2, b3, b4, b6]	107 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.417426794671875
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	113.70698388558002
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
China rohs label	1
End of life manual availability	ENVEOLI1304025
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
