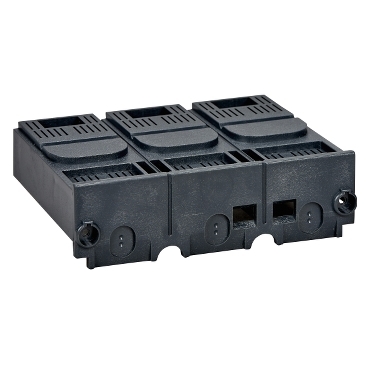

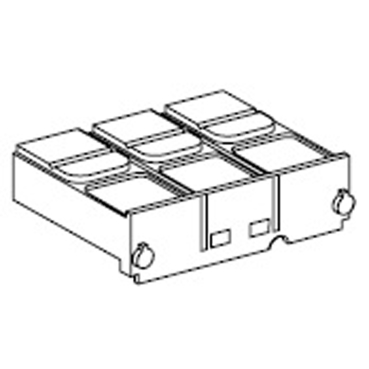

Compact NSX <630 Short terminal shield ComPacT NSX100/160/250, pitch 35mm, IP40, 3 poles

Home ProductsCircuit ProtectionComPactShort terminal shield

Compact NSX <630 Short terminal shield ComPacT NSX100/160/250, pitch 35mm, IP40, 3 poles

Item Number: LV429515

This is an insulation accessory for 3 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This short terminal shield protects against direct contact with power circuit It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • ComPacT NSX100...250
  • ComPacT NSX100...250 DC
  • ComPact NSX100...250
  • ComPact NSX100...250 DC

Range

ComPacT

Product or component type

short terminal shield

Product compatibility

  • circuit-breaker
  • plug-in base

Warranty

18 months

Physical

Range compatibility

  • ComPacT ComPacT NSX100
  • ComPacT ComPacT NSX160
  • ComPacT ComPacT NSX250
  • ComPact ComPact NSX100
  • ComPact ComPact NSX160
  • ComPact ComPact NSX250
  • ComPacT ComPacT NSX DC NSX100 DC
  • ComPacT ComPacT NSX DC NSX160 DC
  • ComPacT ComPacT NSX DC NSX250 DC
  • ComPact Compact NSX100 DC
  • ComPact Compact NSX160 DC
  • ComPact Compact NSX250 DC
  • EasyPact EasyPact CVS100
  • EasyPact EasyPact CVS160
  • EasyPact EasyPact CVS250

Quantity per set

1

Ip degree of protection

IP40 conforming to IEC 60529

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2410034EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

240

Package 2 bare product quantity

60

Package 1 bare product quantity

1

Legacy weee scope

Out

At least in Europe

Weee label

No

Weee applicability

Finished product

Weee exclusion rationale

Product/component not in scope – not electric/electronic device

Accessory / separate part type

insulation accessories

Poles description

3P

Connection pitch

35 mm

Compatibility code

terminal shields

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.500 cm

Package 1 width

16.500 cm

Package 1 length

17.000 cm

Package 1 weight

51.900 g

Unit type of package 2

S04

Number of units in package 2

60

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

3.819 kg

Unit type of package 3

P12

Number of units in package 3

240

Package 3 height

45.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

27.229 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.25719173208148494

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.011275883886773095

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.015800274270442043

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.12093919286053337

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Energy efficiency optimized

False

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.4052070830992335

Bvb

Accepted

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • Operating Manuals

  • Technical Drawing

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
1 3P SHORT TERMINAL SHIELD - 3D CAD
ZIP

1 3P SHORT TERMINAL SHIELD - 3D CAD

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 1000.3 KB
Best Practices for Elctrical Switchboard Manufacturing Success
PDF

Best Practices for Elctrical Switchboard Manufacturing Success

VERSION

1.0

DATE

24 Apr 2019

REVISION

1.0

DOWNLOAD (PDF) 6.2 MB
Smart Panels: Embrace the future of power distribution (eBrochure)
PDF

Smart Panels: Embrace the future of power distribution (eBrochure)

VERSION

1.0

DATE

17 Apr 2019

REVISION

1.0

DOWNLOAD (PDF) 12.5 MB
Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V
ZIP

Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V

VERSION

1.9

DATE

13 Oct 2025

REVISION

1.9

DOWNLOAD (ZIP) 71.5 MB
Catalogue PrismaSeT P Active
ZIP

Catalogue PrismaSeT P Active

VERSION

6.0

DATE

08 Oct 2025

REVISION

6.0

DOWNLOAD (ZIP) 181.1 MB
Catalog PrismaSeT G Active
ZIP

Catalog PrismaSeT G Active

VERSION

5.1

DATE

07 Oct 2025

REVISION

5.1

DOWNLOAD (ZIP) 205.7 MB
ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - May 2024
ZIP

ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - May 2024

VERSION

3.0

DATE

03 Sep 2025

REVISION

3.0

DOWNLOAD (ZIP) 90 MB
Catalog PrismaSeT P
ZIP

Catalog PrismaSeT P

VERSION

8.0

DATE

06 May 2025

REVISION

8.0

DOWNLOAD (ZIP) 182.2 MB
Catalogue PrismaSeT G
ZIP

Catalogue PrismaSeT G

VERSION

7.0

DATE

18 Apr 2025

REVISION

7.0

DOWNLOAD (ZIP) 179.3 MB
Catalogue Prisma P 2019
ZIP

Catalogue Prisma P 2019

VERSION

6.0

DATE

02 Aug 2022

REVISION

6.0

DOWNLOAD (ZIP) 96.4 MB

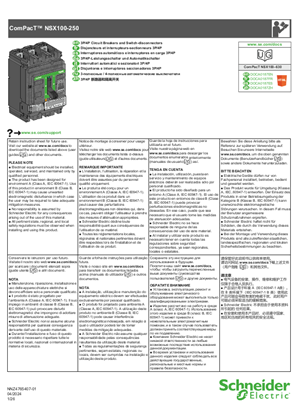

ComPacT NSX100-250 - 3P/4P Circuit Breakers and Switch-disconnectors - Instruction Sheet
ZIP

ComPacT NSX100-250 - 3P/4P Circuit Breakers and Switch-disconnectors - Instruction Sheet

VERSION

2.0

DATE

29 Oct 2025

REVISION

2.0

DOWNLOAD (ZIP) 8.1 MB

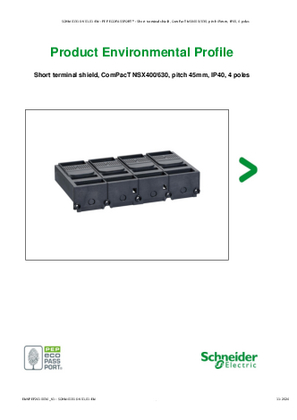

Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 4 poles - Product Environmental Profile
