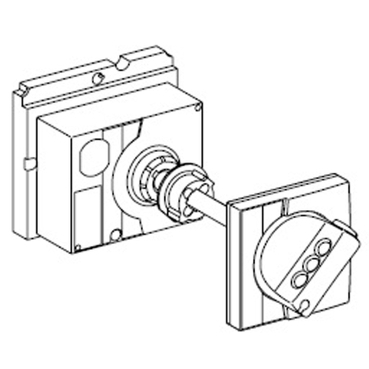

Compact NSX <630 Extended rotary handle ComPact NSX 100/160/250, black handle, shaft length 185mm to 600mm, IP55

Home ProductsCircuit ProtectionComPactExtended rotary handle

Compact NSX <630 Extended rotary handle ComPact NSX 100/160/250, black handle, shaft length 185mm to 600mm, IP55

Item Number: LV429338

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

EasyPact CVS100...250

Product or component type

rotary handle

Warranty

18 months

Physical

Range compatibility

EasyPact CVS100...250

Range compatibility

Compact NS < 630A

Ip degree of protection

IP55

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Important message

This product has been switched to new ComPacT range and is no longer commercialized.

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Package 1 bare product quantity

1

At least in Europe

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

72

Package 2 bare product quantity

6

Weee label

No

Accessory / separate part type

control accessories

Handle colour

black

Handle front plate colour

black

Rotary handle mounting style

extended

Rotary handle padlocking

  • padlock in OFF position
  • 1 to 3 padlocks

Rotary handle mounting location

front

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.700 cm

Package 1 width

10.700 cm

Package 1 length

49.100 cm

Package 1 weight

728.000 g

Unit type of package 2

S04

Number of units in package 2

6

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

5.500 kg

Unit type of package 3

P12

Number of units in package 3

72

Package 3 height

90.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

67.417 kg

Total lifecycle carbon footprint

6 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

3.672340027666009

Carbon footprint of the manufacturing phase [a1 to a3]

4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.1120435449036822

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.2644536193710827

Carbon footprint of the installation phase [a5]

0.3 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

1.478820525736642

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

5.527657717677417

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

bd8035a3-0d10-40bd-a7d4-94c8c5f694a9

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Operating Manuals

  • Technical Drawing

  • Declaration of Conformity (Sustainability)

Extended rotary handle forNSX100/160/250 Compact circuit breaker - 3D CAD
ZIP

Extended rotary handle forNSX100/160/250 Compact circuit breaker - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 1 MB
Smart Panels: Embrace the future of power distribution (eBrochure)
PDF

Smart Panels: Embrace the future of power distribution (eBrochure)

VERSION

1.0

DATE

17 Apr 2019

REVISION

1.0

DOWNLOAD (PDF) 12.5 MB
Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V
ZIP

Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V

VERSION

1.9

DATE

13 Oct 2025

REVISION

1.9

DOWNLOAD (ZIP) 71.5 MB
ComPacT NSX - ComPacT INS INV - MasterPacT NW - DC-DC PV-DC EP catalog
ZIP

ComPacT NSX - ComPacT INS INV - MasterPacT NW - DC-DC PV-DC EP catalog

VERSION

1.2

DATE

13 Oct 2025

REVISION

1.2

DOWNLOAD (ZIP) 71.5 MB

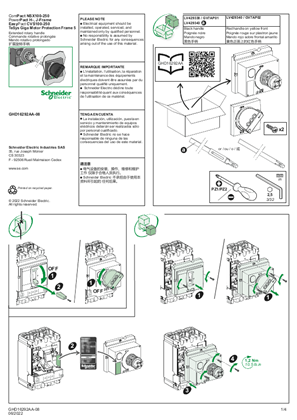

ComPact NSX100-250, PowerPact H-, J-Frame, EasyPact CVS100-250, and TeSys Giga Motor Protection Frame 5 -Extended rotary handle - Instruction Sheet
ZIP

ComPact NSX100-250, PowerPact H-, J-Frame, EasyPact CVS100-250, and TeSys Giga Motor Protection Frame 5 -Extended rotary handle - Instruction Sheet

VERSION

3.0

DATE

02 Jan 2024

REVISION

3.0

DOWNLOAD (ZIP) 1.4 MB
ComPact NSX100-630 - User Guide
ZIP

ComPact NSX100-630 - User Guide

VERSION

4.1

DATE

01 Aug 2025

REVISION

4.1

DOWNLOAD (ZIP) 17.8 MB
Contatto ausiliario SDE Electrical diagram
ZIP

Contatto ausiliario SDE Electrical diagram

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 40.1 KB

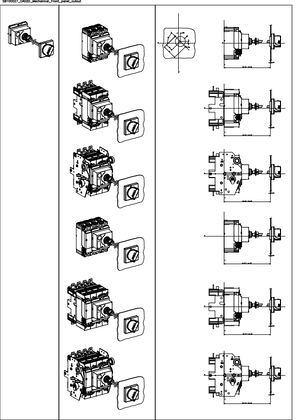

Extended standard rotary handle NSX100-250 circuit breaker Accessory Technical drawings
