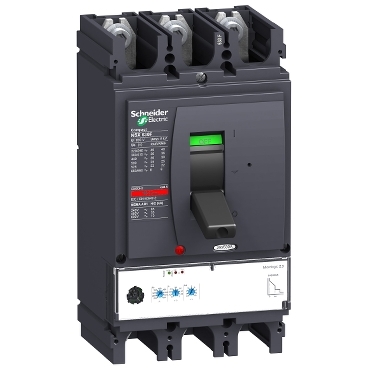

Compact NSX <630 Circuit breaker ComPact NSX630N, 50kA/415VAC, MicroLogic 2.3 trip unit 630A, 3 poles 3d

Item Number: LV432893

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width140 mm

Height255 mm

Depth110 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480015069	-

Specifications

Design

Range	ComPact
Range of product	ComPact NSX400...630
Product or component type	circuit breaker
Device application	distribution
Warranty	18 months

Physical

[in] rated current	630 A at 40 °C
[ue] rated operational voltage	690 V AC 50/60 Hz
Control type	toggle
Mounting mode	fixed
Mechanical durability	15000 cycles
Electrical durability	2000 cycles at 690 V In 6000 cycles at 690 V In/2 4000 cycles at 440 V In 8000 cycles at 440 V In/2
Mounting support	backplate
Protection type	L : for overload protection (long time) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection
Local signalling	flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload
Width	140 mm
Height	255 mm
Depth	110 mm
Net weight	6.2 kg
Standards	EN/IEC 60947
Product certifications	CCC EAC Marine
Ip degree of protection	IP40 conforming to IEC 60529
Ik degree of protection	IK07 conforming to IEC 62262
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-50...85 °C
Relative humidity	0...95 %
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2304018EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Important message	This product has been switched to new ComPacT range and is no longer commercialized.
Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	EOC
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	ComPact NSX
Device short name	NSX630N
Poles description	3P
Protected poles description	3t
Network type	AC
Network frequency	50/60 Hz
Suitability for isolation	yes conforming to EN/IEC 60947-2
Utilisation category	category A
Breaking capacity	85 kA at 240 V AC 50/60 Hz conforming to UL 508 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 600 V AC 50/60 Hz conforming to UL 508 50 kA at 480 V AC 50/60 Hz conforming to UL 508 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code	N 50 kA 415 V AC
Trip unit name	MicroLogic 2.3
Trip unit technology	electronic
Trip unit protection functions	LSoI
[ui] rated insulation voltage	800 V AC 50/60 Hz
[uimp] rated impulse withstand voltage	8 kV
[ics] rated service breaking capacity	11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 42 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Upside connection	front
Downside connection	front
Connection pitch	45 mm
Trip unit rating	630 A at 40 °C
Long time pick-up adjustment type ir	adjustable 9 settings
Long time pick-up adjustment range	250...630 A
Long time delay adjustment type	fixed
[tr] long-time delay adjustment range	16 s at 6 x Ir
Thermal memory	20 minutes before and after tripping
Short-time pick-up adjustment type isd	adjustable 9 settings
[isd] short-time pick-up adjustment range	1.5...10 x Ir
Short-time delay adjustment type	fixed
Instantaneous pick-up adjustment type ii	fixed
Instantaneous pick-up adjustment range	6900 A
Earth-leakage protection	without
Zone selective interlocking zsi	without
Number of slots	6 slot(s)
Compatibility code	NSX630
Overvoltage category	class II
Electrical shock protection class	class II
Pollution degree	3 conforming to IEC 60664-1
Operating altitude	0...2000 m without derating 2000 m...5000 m with derating
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	15.8 cm
Package 1 width	16.2 cm
Package 1 length	29.4 cm
Package 1 weight	5.69 kg
Unit type of package 2	S04
Number of units in package 2	3
Package 2 height	30 cm
Package 2 width	40 cm
Package 2 length	60 cm
Package 2 weight	17.836 kg
Unit type of package 3	P12
Number of units in package 3	12
Package 3 height	50 cm
Package 3 width	80 cm
Package 3 length	120 cm
Package 3 weight	83.344 kg
Sustainable packaging	No
Energy efficiency optimized	False
Take-back	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Scip number	25ca3248-85d0-423a-a9d8-5b7aeb52e7b6
End of life manual availability	ENVEOLI2304018EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
