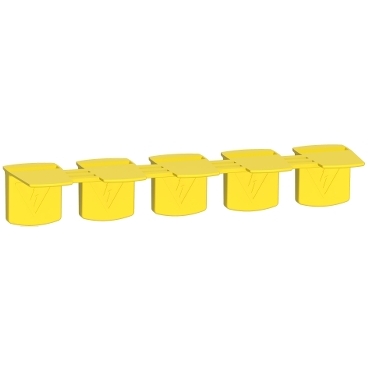

Acti9 Tooth caps Set of 20 tooth caps for Acti9

Item Number: A9XPT920

This Acti9 product is a set of 20 tooth caps. It is compatible with Multi9 C60 comb busbar.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

comb busbar tooth cover

Product compatibility

  • iID K
  • iK60
  • iID
  • iSW switch disconnector
  • iSW-NA
  • iC60

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

Quantity per set

set of 20

Range compatibility

  • Multi9 C60H comb busbar
  • Multi9 C60L comb busbar
  • Multi9 C60N comb busbar
  • Multi9 C60CTRL comb busbar

Device presentation

cuttable

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2005011EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Brand labelled

Substance regulation data deliverable

Yes

Legacy weee scope

Out

At least in Europe

Package 2 bare product quantity

50

Package 1 bare product quantity

1

Weee label

No

Product name

Linergy FH

Accessory / separate part category

insulation accessory

Connection pitch

18 mm

Targeted country

Macedonia

Distribution type

  • 3 L
  • N + 3 L
  • 1 L
  • 2 L

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.500 cm

Package 1 width

4.600 cm

Package 1 length

8.500 cm

Package 1 weight

15.000 g

Unit type of package 2

S02

Number of units in package 2

50

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

1.075 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

90215406-b6bf-44f8-b463-8540d32a6f6b

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
