Acti9 Terminal for aluminium cables from 16 to 50mm2, set of 1

Item Number: 27060

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3303430270607	-
12	BB1	23303430270601	-

Specifications

Design

Range of product	C120 C60 I-NA Multi9 ID
Range	Acti9
Product or component type	terminal
Product compatibility	C60 UL1077 C120NA-DC Vigi C120 ID I-NA SW60-DC C60NA-DC C120 C60 C60CTRL C60H-DC iSW 40-125
Market segment	small commercial
Warranty	18 months

Physical

Standards	EN/IEC 61439-1
[in] rated current	100 A 80 A 63 A 25 A 32 A 40 A 50 A 125 A
Connections - terminals	cable connector
Wire stripping length	13 mm
Range compatibility	Multi9 C60 Acti9 C60H-DC Acti9 iSW Acti9 iC60 Acti9 Reflex iC60 Acti9 iID Acti9 iSW-NA Acti9 SW60-DC Acti9 C60NA-DC Acti9 C120NA-DC Multi9 ID Acti9 DT60 Acti9 C120 Acti9 Vigi C120
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessories
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Package 3 bare product quantity	144
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty duration(in months) bmecat	18
Accessory / separate part category	connection accessory
Tightening torque	10 N.m
Compatibility code	C120
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.700 cm
Package 1 width	12.000 cm
Package 1 length	13.500 cm
Package 1 weight	20.000 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	8.500 cm
Package 2 width	9.500 cm
Package 2 length	23.200 cm
Package 2 weight	306.000 g
Unit type of package 3	S03
Number of units in package 3	144
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	4.137 kg
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	90215406-b6bf-44f8-b463-8540d32a6f6b
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Technical Data Catalogues
Installation Instruction
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Clipsal Resi MAX Circuit Protection - The complete residential solution, 124301

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB

ZIP

multistandard protection for oem applications brochure multi9

VERSION

2.0

DATE

13 Feb 2023

REVISION

2.0

DOWNLOAD (ZIP) 1 MB

ZIP

Multi9 - Catalog 13 April 2026 - Multistandard protection for OEM applications

VERSION

2.13

DATE

21 Apr 2026

REVISION

2.13

DOWNLOAD (ZIP) 49.7 MB

ZIP

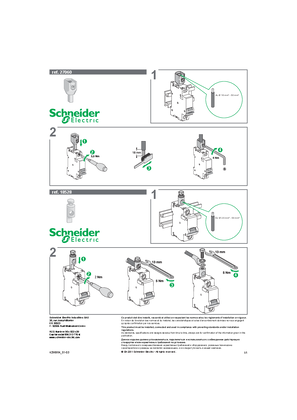

Connector for aluminium cable - Instruction Sheet
