Acti9 Terminal block 250A

Item Number: SEA9NPB250TB

1 PCE 0

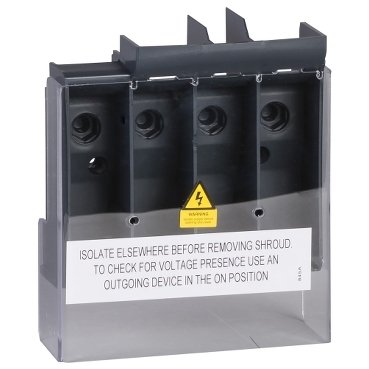

This Acti9 Isobar B accessory is a terminal block. It has 4 poles. The Ie rated operational current is up to 250A. Its dimensions are (W) 150mm x (H) 172mm x (D) 65mm. It is intended to realize the connection of devices in the distribution board. A cable cross-section of 95mm² can be used for rigid cables, and a 120mm² one for solid cables.

Where To Buy

Datasheet

Download

Product Dimensions

Width150 mm

Height172 mm

Depth65 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	5018934963570	-

Specifications

Design

Range	Acti9
Product or component type	terminal block
Device application	connection

Physical

Range compatibility	Acti 9 Acti9 Isobar B distribution board
[ie] rated operational current	250 A
Height	172 mm
Depth	65 mm
Width	150 mm
Cable stiffness	flexible 95-95 mm² solid 120-120 mm²
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1809003EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Poles description	4P
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.500 cm
Package 1 width	16.500 cm
Package 1 length	19.000 cm
Package 1 weight	754.000 g
Unit type of package 2	P12
Number of units in package 2	144
Package 2 height	80.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	128.576 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	24 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.6353510665530644
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.17455741583576898
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.02935485108982983
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	18.49300315987108
Carbon footprint of the use phase [b2, b3, b4, b6]	18 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.9806519614326397
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	24.31291845478238
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Tsca declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=SEA9NPB250TB_TSCA_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Oecd pfas declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=SEA9NPB250TB_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=SEA9NPB250TB_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Tsca regulation	Does not contain Section 6H Chemical
Oecd pfas regulation	No OECD PFAS Chemicals Present
Pop directive	No POPs
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Environmental Disclosure
Installation Instruction
Specification Guide
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Acti9 Terminal block 250A

Item Number: SEA9NPB250TB

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

Product Brochures

Environmental Disclosure

Installation Instruction

Specification Guide

Declaration of Conformity (Sustainability)

multistandard protection for oem applications brochure multi9

Acti9 ISOBAR P B DISTRIBUTION BOARD

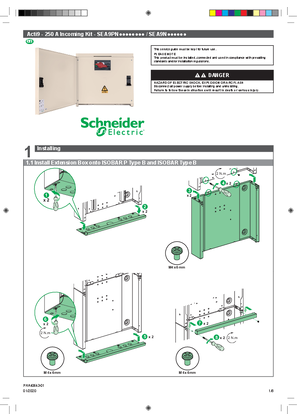

Acti9 - 250 A Incoming Kit - instruction sheet
