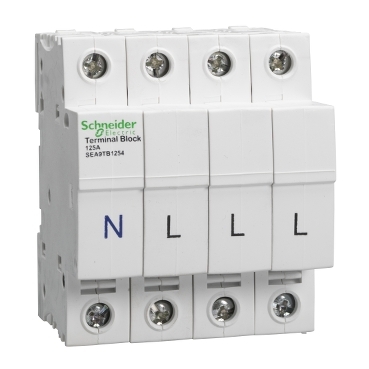

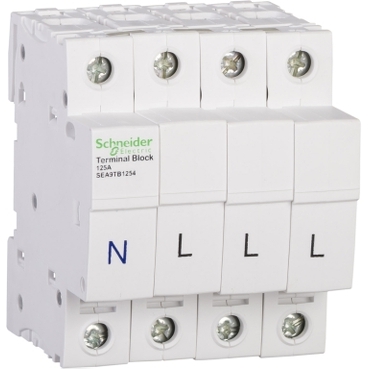

Acti9 Terminal block 125A, 4P

Item Number: SEA9TB1254

1 PCE 0

This Acti9 Isobar B accessory is a terminal block. It is a 4 pole, the rated current is up to 125A. The product width is 72mm. The device application is connection.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	5018934963617	-

Specifications

Design

Range	Acti9
Product or component type	terminal block
Device application	connection

Physical

Range compatibility	Acti 9 Acti9 DB PEV chassis
[ie] rated operational current	125 A
Width	72 mm
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	36
Package 3 bare product quantity	288
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Weee applicability	Finished product
Weee exclusion rationale	Component not in scope – non independent function
Poles description	4P
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.400 cm
Package 1 width	7.900 cm
Package 1 length	9.500 cm
Package 1 weight	327.000 g
Unit type of package 2	S03
Number of units in package 2	36
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	12.062 kg
Unit type of package 3	P06
Number of units in package 3	288
Package 3 height	75.000 cm
Package 3 width	80.000 cm
Package 3 length	60.000 cm
Package 3 weight	108.900 kg
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications
