Acti9 Switch disconnector 3P, 125A, 415 V

Item Number: A9S66392

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width54 mm

Height85 mm

Depth73 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480531484	-
4	BB1	13606480531481	-

Specifications

Design

Range of product	iSW 40...125
Range	Acti9
Product or component type	switch disconnector
Device application	isolation control
Warranty	18 months

Physical

[ie] rated operational current	125 A at 415 V AC 50/60 Hz
[ue] rated operational voltage	415 V AC 50/60 Hz
Control type	toggle
Local signalling	ON/OFF indication
Mounting mode	fixed
Mounting support	DIN rail
Height	85 mm
Width	54 mm
Depth	73 mm
Mechanical durability	20000 cycles
Electrical durability	2500 cycles
Connections - terminals	tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule
Wire stripping length	14 mm
Standards	BS EN 60947-3 AS 60947-3 IEC 60947-3 EN 60947-3 NZS 60947-3
Ip degree of protection	IP20
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-40...85 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2502025EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 iSW
Device short name	iSW
Poles description	3P
Utilisation category	AC-22A
Suitability for isolation	yes
[icm] rated short-circuit making capacity	5 kA switch-disconnector alone
[icw] rated short-time withstand current	1500 A
[ui] rated insulation voltage	500 V AC 50/60 Hz
[uimp] rated impulse withstand voltage	6 kV
Contact position indicator	yes
Comb busbar and distribution block compatibility	top or bottom: YES
Connection pitch	18 mm between phases
9 mm pitches	6
Total power losses	19.2 W
Power losses per pole	6.4 W
Tightening torque	3.5 N.m
Compatibility code	iSW
Pollution degree	3
Tropicalisation	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.8 cm
Package 1 width	9.2 cm
Package 1 length	5.4 cm
Package 1 weight	255 g
Unit type of package 2	BB1
Number of units in package 2	4
Package 2 height	8 cm
Package 2 width	9.5 cm
Package 2 length	22 cm
Package 2 weight	1.055 kg
Unit type of package 3	S03
Number of units in package 3	44
Package 3 height	30 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	12.653 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	233 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.774352387733497
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0738833760732296
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.02526622024811864
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	230.56
Carbon footprint of the use phase [b2, b3, b4, b6]	231 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6415556256158601
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Halogen-free status	Halogen free plastic parts product
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	233.07505760967072
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	e5f22bd9-8e0c-4771-b932-618a392a4c8b
China rohs label	1
Halogen-free status	Halogen free plastic parts product
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

iSW switch-disconnector 3P 40A...125A - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB

ZIP

Acti9 - Switch Disconnector iSW - 4P - 63 A - 415 V - Product Environmental Profile

VERSION

1.0

DATE

04 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 454.3 KB

ZIP

EU Declaration of Conformity Schneider Electric

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 281.2 KB

ZIP

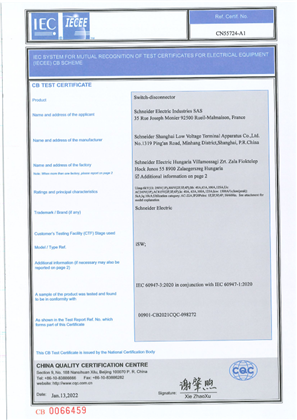

CCC certificate
