Acti9 Step by step control iATL4
Item Number: A9C15412
This Acti9 iATL4 is reliable step by step control auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow step by step control of two circuits through a single push-button. This product is compliant with EN/IEC 60669-2-2.
Specifications
Design
| Range of product | Acti9 |
|---|---|
| Range | Acti9 |
| Product or component type | step by step control auxiliary |
| Product compatibility |
|
| Market segment |
|
| Warranty | 18 months |
Physical
| Remote control type | push-button |
|---|---|
| Mounting mode | fixed, between 2 TL |
| Mounting support | DIN rail |
| Height | 86 mm |
| Width | 36 mm |
| Depth | 71 mm |
| Connections - terminals |
|
| Wire stripping length | 11 mm |
| Range compatibility |
|
| Ip degree of protection | IP20 conforming to IEC 60529 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20...50 °C |
| Ambient air temperature for storage | -40...70 °C |
| Standards | EN/IEC 60669-2-2 |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2311015EN |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
Documents & downloads
-
All
-
CAD Files and Packs
-

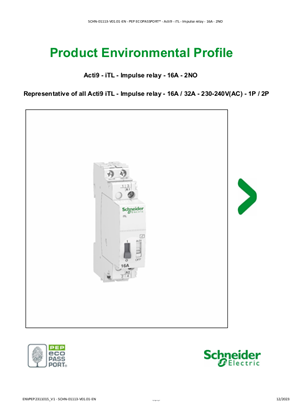

Environmental Disclosure
-

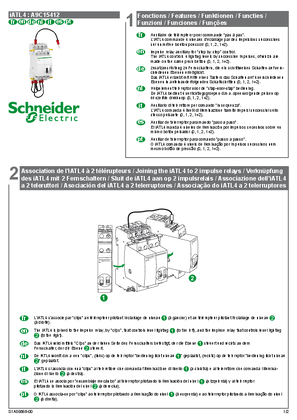

Installation Instruction
-
