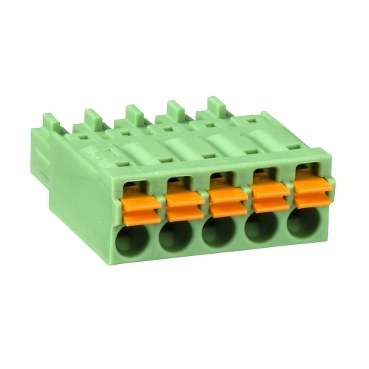

Acti9 Spring connectors Set of 12 5 pins Ti24

Home ProductsCircuit ProtectionActi9Spring connectors

Acti9 Spring connectors Set of 12 5 pins Ti24

Item Number: A9XC2412

1 PCE 0

This is a set of 12 connectors. With 5 spring connections. its terminals accept rigid copper cable from 0.5mm2 to 1.5mm2. and flexible one from 0.5mm2 to 1.5mm2.

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480437274	-

Specifications

Design

Range of product	Acti9
Range	Acti9
Product or component type	connector
Product compatibility	OF+SD 24 RCA iC60 iATL 24 Acti 9 Smartlink Reflex iC60 iOF+SD 24 iACT 24
Market segment	small commercial

Physical

Quantity per set	set of 12
Connections - terminals	spring connector 5 pin(s)
Range compatibility	Acti 9
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	reference is accessory, derogation apply
Legacy weee scope	In
Package 1 bare product quantity	12
Package 2 bare product quantity	1200
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	connectors Ti24
Accessory / separate part category	connection accessory
Compatibility code	connectors Ti24
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.000 cm
Package 1 width	9.500 cm
Package 1 length	12.500 cm
Package 1 weight	37.000 g
Unit type of package 2	S02
Number of units in package 2	100
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	4.096 kg
Sustainable packaging	No
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications
