Acti9 Single push-button 1NO grey

Item Number: A9E18032

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height82 mm

Depth71 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480088247	-
12	BB1	13606480088244	-

Specifications

Design

Range of product	iPB
Range	Acti9
Product or component type	push-button
Market segment	residential small commercial

Physical

Standards	IEC 60947-5-1 IEC 60669-1
[ie] rated operational current	20 A
[ue] rated operational voltage	250 V AC
Control type	1 push-button grey
Mounting mode	fixed
Mounting support	35 mm symmetrical DIN rail
Height	82 mm
Width	18 mm
Depth	71 mm
Electrical durability	AC-22: 30000 cycles AC 50/60 Hz
Connections - terminals	staggered tunnel terminal1 cable(s) 0.5-0.5 mm² rigid staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible with ferrule staggered tunnel terminal2 cable(s) 2.5-2.5 mm² rigid staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible with ferrule
Wire stripping length	9 mm
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-35...70 °C
Ambient air temperature for storage	-40...80 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1103001EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Package 3 bare product quantity	108
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 iPB
Device short name	iPB
Contacts type and composition	1 NO
Comb busbar and distribution block compatibility	upside: Clario upside: Librio upside: ProDis
9 mm pitches	2
Tightening torque	1 N.m
Compatibility code	iPB
Tropicalisation	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.800 cm
Package 1 width	7.500 cm
Package 1 length	9.000 cm
Package 1 weight	39.000 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	8.000 cm
Package 2 width	10.000 cm
Package 2 length	23.000 cm
Package 2 weight	519.000 g
Unit type of package 3	S03
Number of units in package 3	108
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	5.199 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.8441285079851023
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.006191756332446105
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.018061895037880405
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1.548735401735347
Carbon footprint of the use phase [b2, b3, b4, b6]	2 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.20729138484950577
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.6244089459402815
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	1f68db37-1d35-43e3-91db-a07321e19eb2
Tsca declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18032_TSCA_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Oecd pfas declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18032_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18032_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Tsca regulation	Does not contain Section 6H Chemical
Oecd pfas regulation	Item contains PFAS Chemicals
Pop directive	No POPs
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Push-button and signal lamp - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 795.2 KB

ZIP

Acti9 iIL Three-phase voltage indicator light - Red - 230-400 Vac - Product Environmental Profile

VERSION

1.0

DATE

30 June 2026

REVISION

1.0

DOWNLOAD (ZIP) 396.7 KB

ZIP

UK Declaration of Conformity UKCA

VERSION

1.0

DATE

09 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 371.2 KB

ZIP

UK_DoC_FD16041502B_Acti9_iPB

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 371.2 KB

ZIP

DoC_EU_FD16041502C_Acti9 iPB Switch PushButton

VERSION

2.0

DATE

23 Feb 2024

REVISION

2.0

DOWNLOAD (ZIP) 480 KB

ZIP

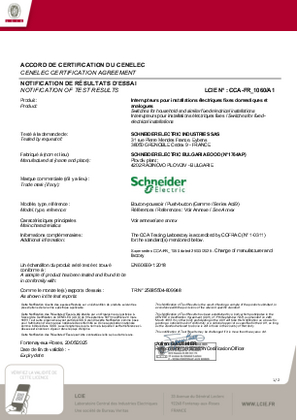

CCA Certificate

VERSION

1.0

DATE

14 July 2025

REVISION

1.0

DOWNLOAD (ZIP) 494 KB

ZIP

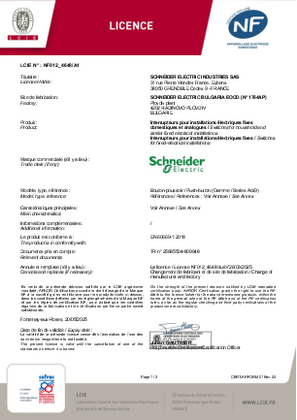

NF Certificate
