Acti9 Single indicator light White, 110-230 Vac

Item Number: A9E18322

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height82 mm

Depth69.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480088346	-
12	BB1	13606480088343	-

Specifications

Design

Range of product	Acti9
Range	Acti9
Product or component type	modular pilot light
Market segment	small commercial residential

Physical

Local signalling	1 LED white, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
Mounting mode	fixed
Mounting support	symmetrical DIN rail
Height	82 mm
Width	18 mm
Depth	69.5 mm
Wire stripping length	9 mm
Standards	IEC 60947-5-1
Ip degree of protection	IP2 IPxx B
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-35...70 °C
Ambient air temperature for storage	-40...80 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1103001EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Legacy weee scope	In
	At least in Europe
Package 3 bare product quantity	108
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 iIL
Device short name	iIL
[us] rated supply voltage	110...230 V AC at 50/60 Hz 110...130 V DC
Comb busbar and distribution block compatibility	upside: ProDis
9 mm pitches	2
Auxiliary connection terminal	tunnel type terminal 1 cable(s) rigid 0.5-0.5 mm² tunnel type terminal 2 cable(s) rigid 2.5-2.5 mm² tunnel type terminal 1 cable(s) flexible 0.5-0.5 mm² tunnel type terminal 2 cable(s) flexible 2.5-2.5 mm² tunnel type terminal 2 cable(s) flexible with ferrule 2.5-2.5 mm²
Tightening torque	1 N.m
Compatibility code	iIL
Pollution degree	3
Tropicalisation	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.800 cm
Package 1 width	6.700 cm
Package 1 length	9.000 cm
Package 1 weight	39.000 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	8.000 cm
Package 2 width	9.900 cm
Package 2 length	23.300 cm
Package 2 weight	520.000 g
Unit type of package 3	S03
Number of units in package 3	108
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	5.100 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.867010604940301
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.006359598512140026
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.01855150536325363
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1.548735401735347
Carbon footprint of the use phase [b2, b3, b4, b6]	2 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.21291050743716217
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.653567617988204
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	6763a476-30bc-4d05-a4bb-93f8d65c3771
Tsca declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18322_TSCA_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Oecd pfas declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18322_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18322_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Tsca regulation	Does not contain Section 6H Chemical
Oecd pfas regulation	No OECD PFAS Chemicals Present
Pop directive	No POPs
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Acti9 iIL single indicator light - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 948.6 KB

ZIP

Acti9 iIL Three-phase voltage indicator light - Red - 230-400 Vac - Product Environmental Profile

VERSION

1.0

DATE

30 June 2026

REVISION

1.0

DOWNLOAD (ZIP) 396.7 KB

ZIP

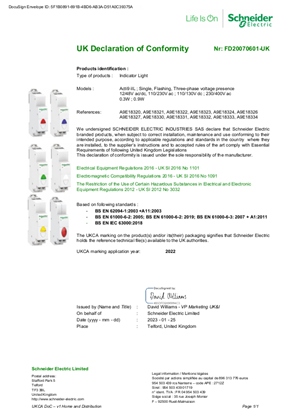

UK Declaration of Conformity

VERSION

1.0

DATE

13 Feb 2026

REVISION

1.0

DOWNLOAD (ZIP) 209.9 KB

ZIP

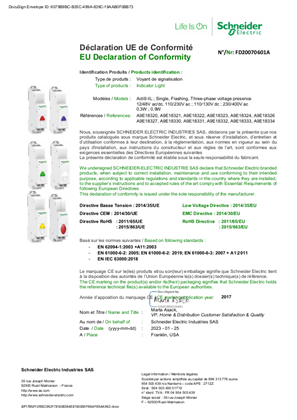

EU Declaration of Conformity - Schneider Electric

VERSION

1.0

DATE

12 Feb 2026

REVISION

1.0

DOWNLOAD (ZIP) 399.3 KB

ZIP

Indicator light units series Acti9 iIL

VERSION

1.0

DATE

22 July 2025

REVISION

1.0

DOWNLOAD (ZIP) 622.3 KB

ZIP

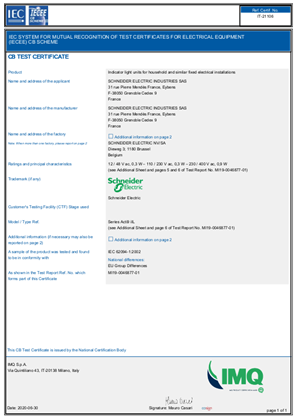

IMQ certificate
