Acti9 Single indicator light Green, 110-230 Vac

Home ProductsCircuit ProtectionActi9Single indicator light

Acti9 Single indicator light Green, 110-230 Vac

Item Number: A9E18321

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height82 mm

Depth icon

Depth69.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

modular pilot light

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

Local signalling

1 LED green, service life 100000 h of constant lighting efficiency (consumption 0.3 W)

Mounting mode

fixed

Mounting support

symmetrical DIN rail

Height

82 mm

Width

18 mm

Depth

69.5 mm

Wire stripping length

9 mm

Standards

IEC 60947-5-1

Ip degree of protection

  • IP2
  • IPxx B

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35...70 °C

Ambient air temperature for storage

-40...80 °C

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110301EN

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Package 3 bare product quantity

108

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Average percentage of recycled plastic content

0 %

Product name

Acti9 iIL

Device short name

iIL

[us] rated supply voltage

  • 110...230 V AC at 50/60 Hz
  • 110...130 V DC

Comb busbar and distribution block compatibility

upside: ProDis

9 mm pitches

2

Auxiliary connection terminal

  • tunnel type terminal 1 cable(s) rigid 0.5-0.5 mm²
  • tunnel type terminal 2 cable(s) rigid 2.5-2.5 mm²
  • tunnel type terminal 1 cable(s) flexible 0.5-0.5 mm²
  • tunnel type terminal 2 cable(s) flexible 2.5-2.5 mm²
  • tunnel type terminal 2 cable(s) flexible with ferrule 2.5-2.5 mm²

Tightening torque

1 N.m

Compatibility code

iIL

Pollution degree

3

Tropicalisation

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.500 cm

Package 1 width

2.000 cm

Package 1 length

8.000 cm

Package 1 weight

38.000 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.500 cm

Package 2 width

10.000 cm

Package 2 length

23.500 cm

Package 2 weight

514.000 g

Unit type of package 3

S03

Number of units in package 3

108

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

5.124 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Bvb

Accepted

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Scip number

6763a476-30bc-4d05-a4bb-93f8d65c3771

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Installation Instruction

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Acti9 iIL single indicator light - 3D CAD
ZIP

Acti9 iIL single indicator light - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 948.6 KB

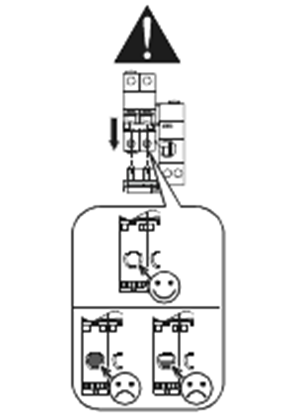

Quick Vigi iC60 - Instruction for installation
ZIP

Quick Vigi iC60 - Instruction for installation

VERSION

1.0

DATE

18 Jun 2024

REVISION

1.0

DOWNLOAD (ZIP) 29.9 KB

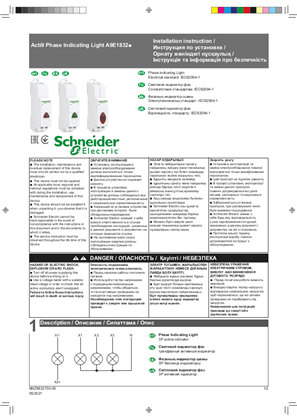

Acti9 Phase Indicating Lights instruction sheet
