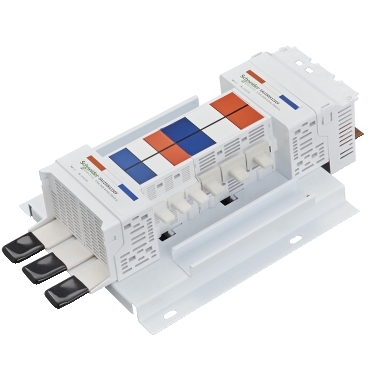

Acti9 SAU hybrid Chassis 250A, 3Ph, 18 poles 18mm and 6 poles 27mm for MCB and RCBO, dual feed
Item Number: SAU250H243DF
Datasheet
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 distribution board
[in] rated current
250 A
Rated voltage
415 V AC
Number of poles
24
Number of poles
- 18 x 18 mm
- 6 x 27 mm
Width
215 mm
Length
245 mm
Standards
AS/NZS 61439
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Eu rohs directive
Compliant
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Busbar type
hybrid
Network type
AC
Number of ways
1 way (incomer) - 3P
Short-circuit withstand
25 kA 0.1 s
[ui] rated insulation voltage
500 V
[uimp] rated impulse withstand voltage
6 kV
Busbar pitch
- 18 mm
- 27 mm
Location of connection
dual feed
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10 cm
Package 1 width
53 cm
Package 1 length
23.5 cm
Package 1 weight
2783 g
Sustainable packaging
No
Warranty (in months)
18
