Acti9 SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 24 Poles, Top or Bottom Feed
Item Number: SAU40024183
Datasheet
Close
Specifications
Design
| Range | Acti9 |
|---|---|
| Product or component type | chassis |
| Device application | distribution |
Physical
| [in] rated current | 400 A |
|---|---|
| Rated voltage | 415 V AC |
| Number of poles | 24 |
| Number of poles | 24 x 18 mm |
| Width | 245 mm |
| Length | 410 mm |
| Depth | 95 mm |
| Net weight | 2.4 kg |
| Standards | AS/NZS 61439 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1602010_V1 |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents & downloads
Filter items
-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Other technical guide
-

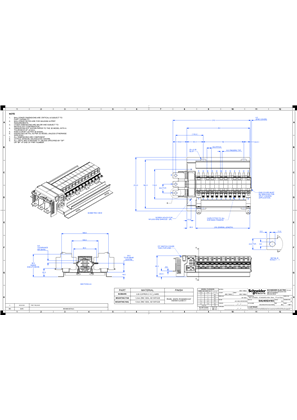

Technical Drawing
-
