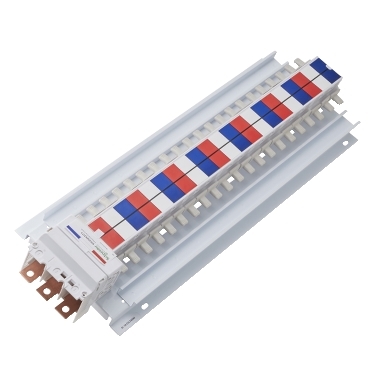

Acti9 SAU Chassis 250A, 3Ph, 42 poles, 27mm for C120 MCB, top or bottom

Item Number: SAU25042273

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606481908599	-

Specifications

Design

Range	Acti9
Product or component type	chassis
Device application	distribution

Physical

Range compatibility	Acti9 distribution board
[in] rated current	250 A
Rated voltage	415 V AC 500 V DC
Number of poles	42
Number of poles	42 x 27 mm
Width	215 mm
Length	569 mm
Standards	AS/NZS 61439
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Busbar type	standard
Network type	AC
Number of ways	1 way (incomer) - 3P
Short-circuit withstand	25 kA 0.1 s
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	6 kV
Busbar pitch	27 mm
Location of connection	top or bottom
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.5 cm
Package 1 width	24.5 cm
Package 1 length	76.1 cm
Package 1 weight	4.7 kg
Sustainable packaging	No
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
Take-back	No
Warranty (in months)	18
