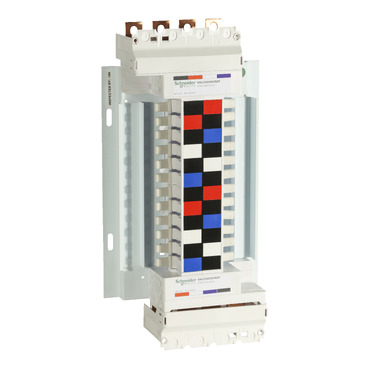

Acti9 SAU Chassis 250A, 3*(1Ph+N), 24 poles, 18mm for iC60 MCB and RCBO, dual feed

Item Number: SAU2502441NDF

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606481908384	-

Specifications

Design

Range	Acti9
Product or component type	chassis
Device application	distribution

Physical

Range compatibility	Acti 9 distribution board
[in] rated current	250 A
Rated voltage	415 V AC 500 V DC
Number of poles	24
Number of poles	24 x 18 mm
Width	215 mm
Length	218 mm
Standards	AS/NZS 61439
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Busbar type	standard
Network type	AC
Number of ways	1 way (incomer) - 1P + N
Short-circuit withstand	25 kA 0.1 s
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	6 kV
Busbar pitch	18 mm
Location of connection	dual feed
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.5 cm
Package 1 width	23.0 cm
Package 1 length	53.0 cm
Package 1 weight	2928.0 g
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Average percentage of recycled metal content	0 %
Warranty (in months)	18
