Acti9 SAU Chassis 250A, 2Ph, 12 poles, 18mm for iC60 MCB and RCBO, dual feed
Item Number: SAU3DC12182DF
Datasheet
Close
Specifications
Design
Range
Acti9
Product or component type
chassis
Device application
distribution
Physical
Range compatibility
Acti 9 distribution board
[in] rated current
250 A
Rated voltage
- 415 V AC
- 500 V DC
Number of poles
12
Number of poles
12 x 18 mm
Width
215 mm
Length
110 mm
Standards
AS/NZS 61439
Others
Package 1 bare product quantity
1
Outside of Europe
Busbar type
standard
Network type
AC/DC
Number of ways
1 way (incomer) - 2P
Short-circuit withstand
25 kA 0.1 s
[ui] rated insulation voltage
500 V
[uimp] rated impulse withstand voltage
6 kV
Busbar pitch
18 mm
Location of connection
dual feed
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.5 cm
Package 1 width
24.5 cm
Package 1 length
39.4 cm
Package 1 weight
1.5 kg
Sustainable packaging
No
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
CAD Files and Packs
-
Other technical guide
-
Technical Data Catalogues
-

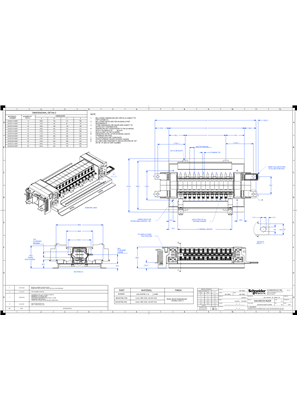

Technical Drawing
-
