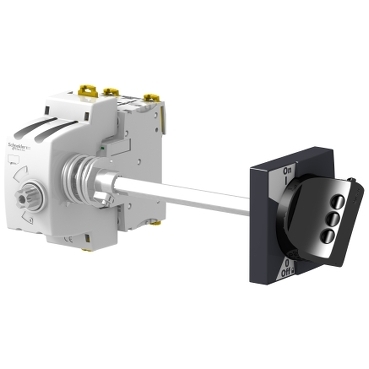

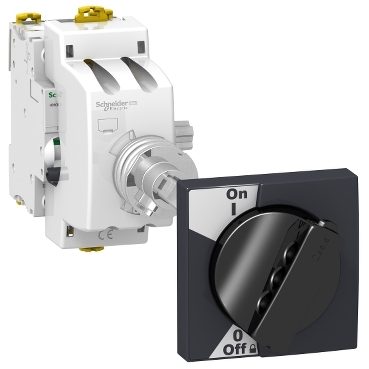

Acti9 iC60 Rotary handle for iC60, black handle

Item Number: A9A27005

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480324796	-

Specifications

Design

Range of product	iID iSW 40...125 iSW-NA iC60
Product or component type	rotary handle

Physical

Mounting mode	drawout fixed
Ip degree of protection	IP55
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

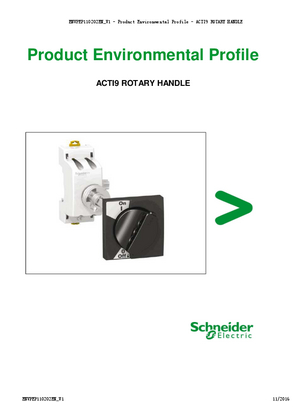

Environmental disclosure	ENVPEP1102002EN
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Brand Labelled
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Legacy weee scope	In
Package 2 bare product quantity	12
Package 3 bare product quantity	48
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Accessory / separate part type	control accessories
Handle colour	black
Rotary handle mounting style	extended
Rotary handle padlocking	lockable in O position 3 padlocks max padlock in OFF position
Rotary handle mounting location	front lateral
Compatibility code	rotary handle
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.500 cm
Package 1 width	12.300 cm
Package 1 length	47.500 cm
Package 1 weight	659.000 g
Unit type of package 2	S04
Number of units in package 2	12
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	8.700 kg
Unit type of package 3	P12
Number of units in package 3	48
Package 3 height	45.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	47.488 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	4799aa29-43df-47e5-9ded-ac5e33a3c1da
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9A27005_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop directive	No POPs
End of life manual availability	ENVEOLI110202EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Installation Instruction
End of Life Manual
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Acti9 ROTARY HANDLE iC60 iID - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.5 MB

ZIP

Multi9 - Catalog 13 April 2026 - Multistandard protection for OEM applications

VERSION

2.13

DATE

21 Apr 2026

REVISION

2.13

DOWNLOAD (ZIP) 49.7 MB

ZIP

Rotary handle for iC60, Vigi iC60, iID - Instruction Sheet

VERSION

1.0

DATE

18 June 2024

REVISION

1.0

DOWNLOAD (ZIP) 3.9 MB

ZIP

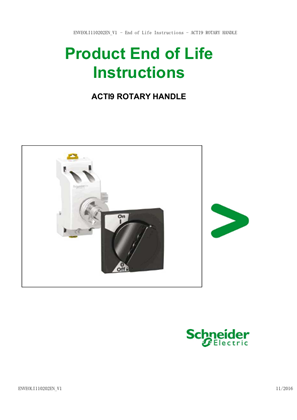

Acti9 ROTARY HANDLE - Product End of Life Instructions
