Acti9 Remote indication auxiliary iACTs, 1 NO + 1 NC

Home ProductsCircuit ProtectionActi9Remote indication auxiliary

Acti9 Remote indication auxiliary iACTs, 1 NO + 1 NC

Item Number: A9C15914

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width9 mm

Height icon

Height81 mm

Depth icon

Depth68 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

iCT

Range

Acti9

Product or component type

remote indication auxiliary

Product compatibility

iCT

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

Range compatibility

Acti9 iCT

Mounting mode

fixed, on the right of CT

Mounting support

35 mm symmetrical DIN rail

Height

81 mm

Width

9 mm

Depth

68 mm

Wire stripping length

9 mm

Standards

EN 60947-5

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-5...50 °C

Ambient air temperature for storage

-40...70 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110308EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

120

Average percentage of recycled plastic content

0 %

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

iACTs

Signal contacts composition

1 NO + 1 NC

Signalling circuit voltage

  • 24 V AC/DC: 10 mA
  • 230 V AC: 50/60 Hz 5 A
  • 230 V AC: 50/60 Hz 2 A
  • 130 V DC: 1 A

[uc] control circuit voltage

  • 24...240 V AC 50/60 Hz
  • 24...130 V DC

[ui] rated insulation voltage

440 V

[uimp] rated impulse withstand voltage

4 kV

9 mm pitches

1

Auxiliary connection terminal

  • tunnel type terminals 2 cable(s) flexible 2.5-2.5 mm²
  • tunnel type terminals 2 cable(s) rigid 1.5-1.5 mm²
  • tunnel type terminals 1 cable(s) rigid 1.5-2.5 mm²
  • tunnel type terminals 1 cable(s) flexible 1.5-2.5 mm²

Tightening torque

0.8...0.8 N.m

Compatibility code

iACTs

Tropicalisation

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.200 cm

Package 1 width

7.500 cm

Package 1 length

8.500 cm

Package 1 weight

43.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

7.900 cm

Package 2 width

9.500 cm

Package 2 length

23.200 cm

Package 2 weight

493.000 g

Unit type of package 3

S03

Number of units in package 3

120

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

6.360 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Scip number

429095ee-388a-4184-bea4-16f87e374975

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Environmental Disclosure

  • Specification Guide

  • Application Notes

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Acti9 iACTs indication auxiliary 1NO 1NC - 3D CAD
ZIP

Acti9 iACTs indication auxiliary 1NO 1NC - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 556.4 KB
Acti9 iCT - Contactors - Product Environmental Profile
ZIP

Acti9 iCT - Contactors - Product Environmental Profile

VERSION

3.0

DATE

08 Aug 2025

REVISION

3.0

DOWNLOAD (ZIP) 320.4 KB
LED Lighting technical guide - How to control and protect LED lighting circuits?
ZIP

LED Lighting technical guide - How to control and protect LED lighting circuits?

VERSION

1.4

DATE

18 Apr 2025

REVISION

1.4

DOWNLOAD (ZIP) 21.4 MB

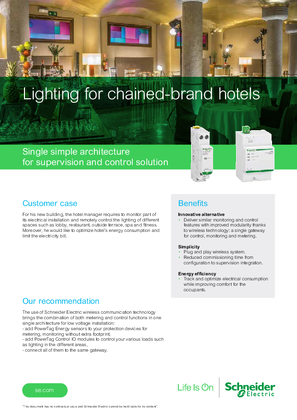

Lighting for chained-brand hotels: Single simple architecture for supervision and control solution
