Acti9 RCA remote ctrl aux with Ti24 for iC60 1P-1PN-2P

Item Number: A9C70122

1 PCE 0

Where To Buy

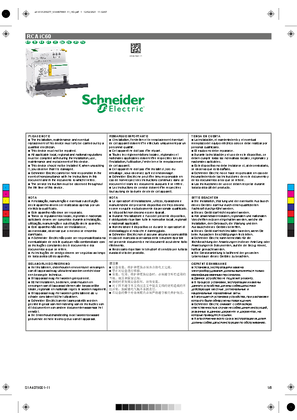

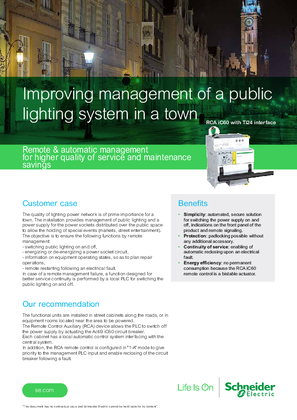

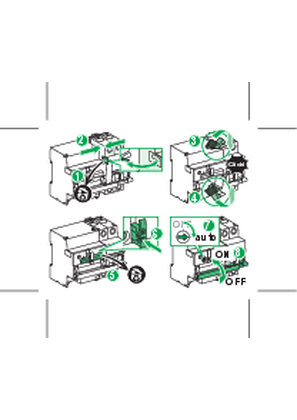

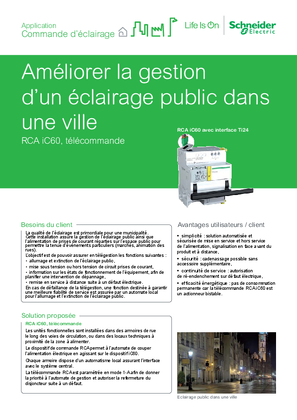

Datasheet

Download

Product Dimensions

Width63 mm

Height93 mm

Depth75.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480097966	-

Specifications

Design

Range of product	iC60
Range	Acti9
Product or component type	remote control auxiliary
Product compatibility	2P iC60 1P + N iC60 1P iC60 1P iC65 2P iC65 iMDU PLC
Market segment	small commercial residential
Warranty	18 months

Physical

Control type	remote control impulse and maintained 230 V AC 50/60 Hz remote control maintained Ti24 24 V DC
Power consumption in w	1 W
Local signalling	flashing green LED: ready to operate flashing orange LED: not operational
Mounting mode	fixed
Mounting support	DIN rail
Height	93 mm
Width	63 mm
Depth	75.5 mm
Net weight	400 g
Electrical durability	10000 cycles
Mechanical durability	10000 cycles
Connections - terminals	power supply: tunnel type terminals 1 cable(s) 0.5-10 mm² rigid without cable end input: tunnel type terminals 1 cable(s) 0.5-10 mm² rigid without cable end output: tunnel type terminals 2 cable(s) 0.5-1.5 mm² rigid without cable end output: tunnel type terminals 1 cable(s) 0.5-2.5 mm² rigid without cable end power supply: tunnel type terminals 1 cable(s) 0.5-6 mm² flexible without cable end input: tunnel type terminals 1 cable(s) 0.5-6 mm² flexible without cable end output: tunnel type terminals 2 cable(s) 0.5-1.5 mm² flexible without cable end output: tunnel type terminals 1 cable(s) 0.5-2.5 mm² flexible without cable end power supply: tunnel type terminals 1 cable(s) 0.5-4 mm² flexible with cable end input: tunnel type terminals 1 cable(s) 0.5-4 mm² flexible with cable end output: tunnel type terminals 2 cable(s) 0.5-1.5 mm² flexible with cable end output: tunnel type terminals 1 cable(s) 0.5-1.5 mm² flexible with cable end Ti24 interface: tunnel type terminals 1 cable(s) 0.5-10 mm² rigid without cable end Ti24 interface: tunnel type terminals 1 cable(s) 0.5-10 mm² flexible without cable end power supply: tunnel type terminals 2 cable(s) 0.5-2.5 mm² rigid without cable end input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² rigid without cable end power supply: tunnel type terminals 2 cable(s) 0.5-2.5 mm² flexible without cable end input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² flexible without cable end power supply: tunnel type terminals 2 cable(s) 0.5-2.5 mm² flexible with cable end input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² flexible with cable end
Wire stripping length	power supply: 10 mm for bottom connection input: 10 mm for bottom connection output: 8 mm for top connection Ti24 interface: 10 mm for terminal connection
Range compatibility	Acti9 iC60 Acti9 iC65 Acti9 iMDU voltage adaptor Modicon PLC
Ip degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Relative humidity	93 % at 40 °C
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-25...60 °C
Mercury free	Yes
Rohs exemption information	Yes

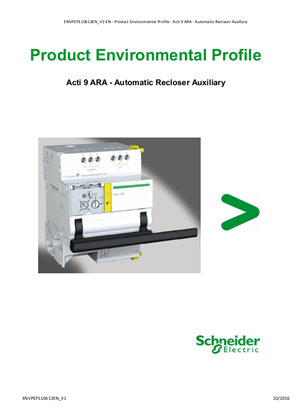

Environmental disclosure	ENVPEP2603039EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	14
	At least in Europe
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	RCA iC60
Signal contacts composition	1 OF volt-free contacts 1 OF Ti24 1 SD Ti24
Signalling circuit voltage	volt-free contact 24...230 V 0.01…1 A AC Ti24 24 V 100 mA DC
Input current	5 mA impulse 5 mA maintained 5.5 mA maintained very low voltage
Impulse duration	>= 200 ms control circuit
Response time	< 500 ms
[us] rated supply voltage	230 V AC 50/60 Hz
[ui] rated insulation voltage	400 V
[uimp] rated impulse withstand voltage	6 kV
Value of setting	auto: remote control authorized off: remote control inhibited mode 1: central control mode 3: central control and local override position A: reclosing authorized after tripping position B: reclosing inhibited after tripping
Comb busbar and distribution block compatibility	NO
9 mm pitches	7
Provision for padlocking	padlockable
Locking options description	padlocking in OFF position
Tightening torque	auxiliary output: 0.7...0.7 N.m auxiliary supply: 1 N.m auxiliary input: 1 N.m
Physical interface	Ti24
Compatibility code	RCA iC60
Pollution degree	3 conforming to IEC 60947
Overvoltage category	II
Tropicalisation	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.000 cm
Package 1 width	11.000 cm
Package 1 length	16.200 cm
Package 1 weight	511.000 g
Unit type of package 2	S03
Number of units in package 2	14
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	7.600 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	9 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	6.64071460041294
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.07861277353373494
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.28399123261648973
Carbon footprint of the installation phase [a5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1.646609628183838
Carbon footprint of the use phase [b2, b3, b4, b6]	2 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.6228906672924264
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	9.272818902039427
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	22d60f38-f25b-4d34-b274-088b0fb0346a
China rohs label	3
Pvc free	No
Silicone-free	No

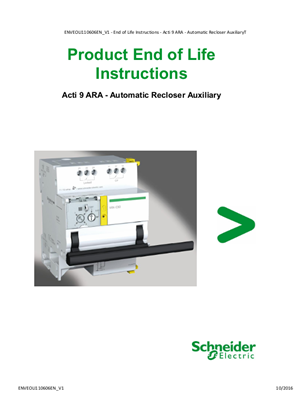

End of life manual availability	ENVEOLI110606EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
