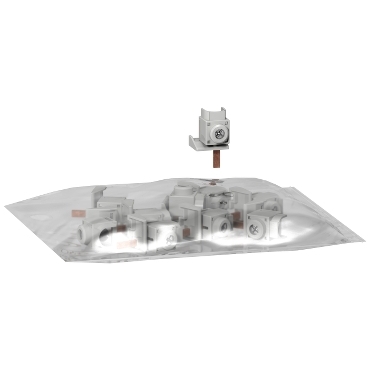

Acti9 Phase connectors Set of 10 63A

Home ProductsCircuit ProtectionActi9Phase connectors

Acti9 Phase connectors Set of 10 63A

Item Number: A9N21041

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • iDPN Vigi
  • Clario

Range

Acti9

Product or component type

connector

Product compatibility

  • iDPN Vigi
  • iDPN

Market segment

small commercial

Warranty

18 months

Physical

Quantity per set

set of 10

[in] rated current

63 A

Range compatibility

  • Acti 9 Multi9 N40 N40N comb busbar
  • Acti 9 Multi9 N40 Vigi N40 Vigi comb busbar
  • Acti 9 Acti9 iDPN comb busbar
  • Acti 9 Acti9 iDPN Vigi comb busbar

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

80

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

No

Product name

Linergy FH

Accessory / separate part category

connection accessory

Distribution type

  • N + L + auxiliary
  • N + L1 + auxiliary
  • N + L1 + Vigi + auxiliary
  • N + L + Vigi + auxiliary

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.0 cm

Package 1 width

7.0 cm

Package 1 length

10.0 cm

Package 1 weight

105.0 g

Unit type of package 2

S03

Number of units in package 2

80

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

8.8 kg

Sustainable packaging

No

Take-back

No

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Scip number

90215406-b6bf-44f8-b463-8540d32a6f6b

China rohs label

1

Take-back

No

Warranty (in months)

18
Show all specifications
