Acti9 Panel Fixing Pan Assembly 4 ways TP&N

Home ProductsCircuit ProtectionActi9Panel Fixing Pan Assembly

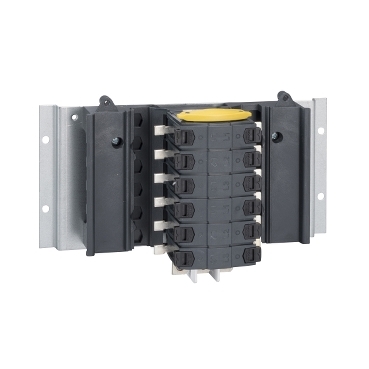

Acti9 Panel Fixing Pan Assembly 4 ways TP&N

Item Number: SEA9BN4TNA

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

pan assembly

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

Provided equipment

mounting plate

[in] rated current

250 A

Number of poles

12 x 18 mm

Length

182 mm

Width

210 mm

Depth

90 mm

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1809003EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Incomer device

  • 3P switch disconnector
  • 3P terminal block
  • 3P MCCB

Protection device type

  • residual current circuit breaker with overcurrent protection (RCBO) 45 A max
  • miniature circuit breaker (MCB) 63 A max

Number of ways

  • 1 way (incomer) - 3P + N
  • 4 ways (outgoer)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.5 cm

Package 1 width

19.5 cm

Package 1 length

22.5 cm

Package 1 weight

1.2 kg

Unit type of package 2

PAM

Number of units in package 2

200

Package 2 height

112.0 cm

Package 2 width

100.0 cm

Package 2 length

120.0 cm

Package 2 weight

260.0 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

28 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

5.785704615203816

Carbon footprint of the manufacturing phase [a1 to a3]

6 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.2778102108792079

Carbon footprint of the distribution phase [a4]

0.3 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.04671859589893341

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

18.49300315987108

Carbon footprint of the use phase [b2, b3, b4, b6]

18 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

3.1522312383543336

Carbon footprint of the end-of-life phase [c1 to c4]

3 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Silicone-free

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

27.755467820207368

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Silicone-free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
