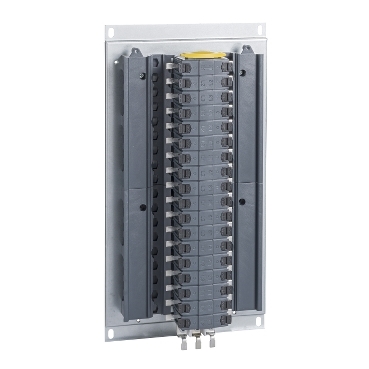

Acti9 Panel Fixing Pan Assembly 12 ways TP&N

Item Number: SEA9BN12TNA

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	5018934962368	-

Specifications

Design

Range	Acti9
Product or component type	pan assembly
Device application	distribution

Physical

Range compatibility	Acti9 Acti9 Isobar B distribution board
Provided equipment	mounting plate
[in] rated current	250 A
Rated voltage	415 V AC 50/60 Hz
Number of poles	36 x 18 mm
Length	398 mm
Width	210 mm
Depth	90 mm
Standards	IEC 61439
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1809003EN
Eu rohs directive	Compliant By Exemption

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Life cycle assessment data	Yes
Weee label	N/A
Weee applicability	Finished product
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
	Outside of Europe
Short-circuit withstand	25 kA 0.1 s
[icw] rated short-time withstand current	25 kA
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	6 kV
Incomer device	3P switch disconnector 3P terminal block 3P MCCB
Protection device type	residual current circuit breaker with overcurrent protection (RCBO) 45 A max miniature circuit breaker (MCB) 63 A max
Number of ways	1 way (incomer) - 3P + N 12 ways (outgoer)
Busbar pitch	18 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.0 cm
Package 1 width	22.0 cm
Package 1 length	40.0 cm
Package 1 weight	5.722 kg
Unit type of package 2	PAM
Number of units in package 2	96
Package 2 height	112.0 cm
Package 2 width	100.0 cm
Package 2 length	120.0 cm
Package 2 weight	569.312 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	63 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	27.58816817349686
Carbon footprint of the manufacturing phase [a1 to a3]	28 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.3246916888756897
Carbon footprint of the distribution phase [a4]	1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.22276983811141415
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	18.49300315987108
Carbon footprint of the use phase [b2, b3, b4, b6]	18 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	15.03088928821958
Carbon footprint of the end-of-life phase [c1 to c4]	15 kg CO2 eq.
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	62.659522148574624
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
